2025
ZV20
w/ 225 XL Pro XS® FourStroke w/DTS controls Mercury® Pro XS®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$71995
USD
|
Overview

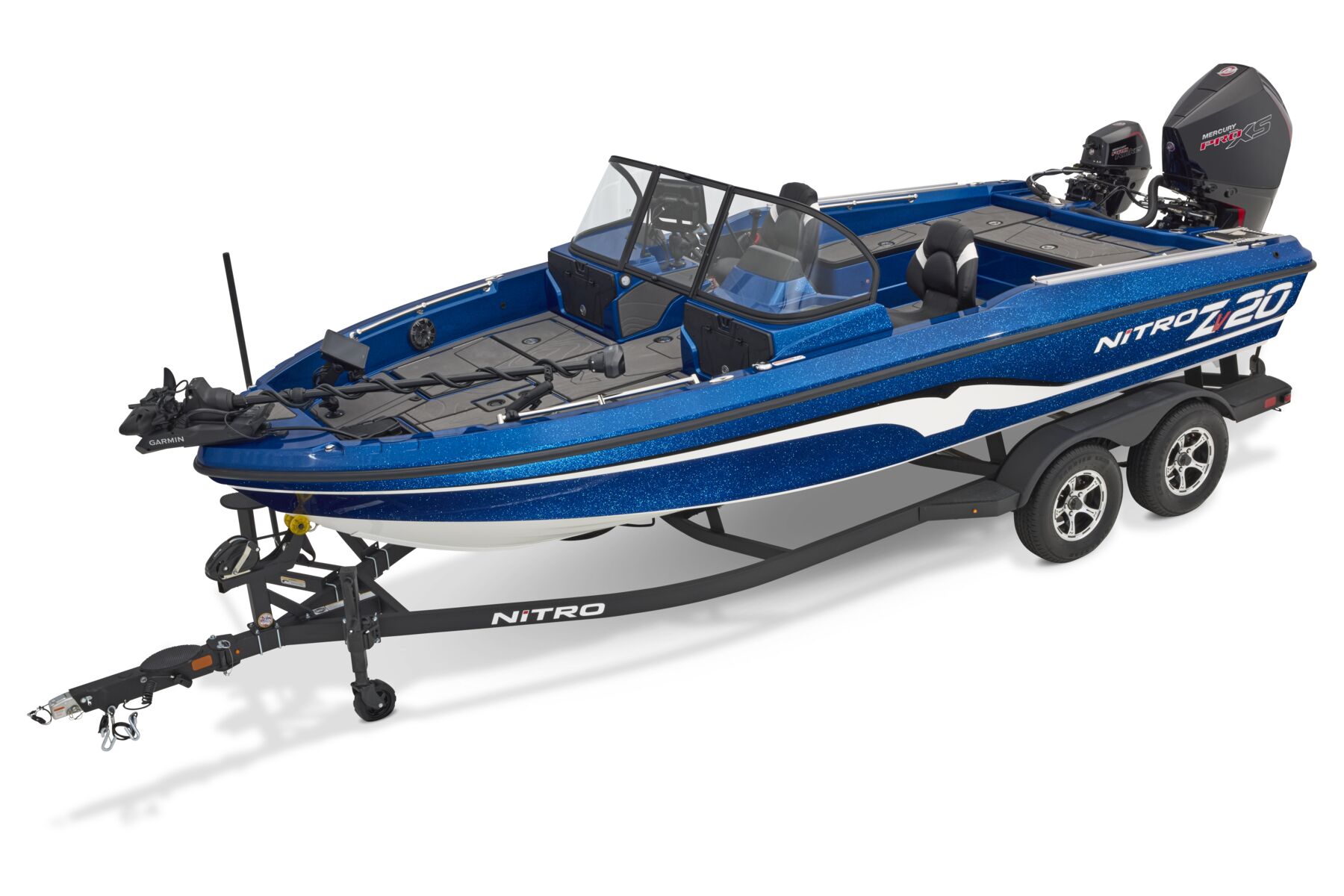

The NITRO® ZV20 is a formidable Deep V fishing boat with the brute strength of a 300HP rating, the fishability you need to conquer the toughest tournament trails, and a hull made to crush swells with ease. It features the NITRO® Z-TOUCH touchscreen control unit that provides command of boat functions with the tap of a finger, and angler-friendly programs like the innovative First Fish function, which automatically fills and recirculates the livewell. A handy key fob controls many of the same functions.
Built with crucial input from walleye pros Keith Kavajecz and Gary Parsons, the ZV20 is designed to find and catch walleye, but it makes a great bass- or trout-fishing platform as well. Rounding out this big water dynamo is a factory-rigged a Mercury® outboard, 36-volt Minn Kota® trolling motor, Lowrance® fishfinder and new custom-fitted trailer designed for years of smooth, easy, on-road towing.
Specifications
| Length | 6.15 m | 20' 2'' |
| Beam | 2.54 m | 8' 4'' |
| Bottom Width | 1.96 m | 6' 5'' |
| Max. Recommended HP | 300 HP | |
| Fuel Capacity | 208.18 L | 55 gal. |
| Max. Person Capacity | 6 persons | |
| Max. Person Weight | 498.95 kg | 1100 lbs. |
| Max. Person, Motor & Gear Weight | 997.9 kg | 2200 lbs. |
| Interior Depth | 63.5 cm | 25'' |
| Transom Height | 66.04 cm | 26'' |
| Deadrise | 18 degrees | |
| Draft | 45.72 cm | 18'' |
| Average Dry Weight | 1315.42 kg | 2900 lbs. |
| Average Package Weight | 2494.76 kg | 5500 lbs. |
| Package Height | 2.18 m | 7' 2'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 8.51 m | 27' 11'' |
| Storage Length | 7.34 m | 24' 1'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | ||||
|---|---|---|---|---|---|
| Mercury® Pro XS® | |||||
| 225 XL Pro XS® FourStroke w/DTS controls | - |
$71995 USD
|
Select Dealer | ||
| 250 XL Pro XS® FourStroke w/DTS controls | - |
$73855 USD
|
Select Dealer | ||
| 300 XL Pro XS® FourStroke w/DTS controls | - |
$77055 USD
|
Select Dealer | ||
| Mercury® Verado® | |||||
| 250 XL Verado® FourStroke | - |
$75685 USD
|
Select Dealer | ||
| 300 XL Verado® FourStroke | - |
$77715 USD
|
Select Dealer | ||
Standard Features
Comfort, Convenience & Peace of Mind
- NMMA® certified
- Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
- EPA-compliant fuel system
- Anti-fatigue padding below bow & cockpit carpet
- Tactically-designed gunnels to maximize interior space & fishing room

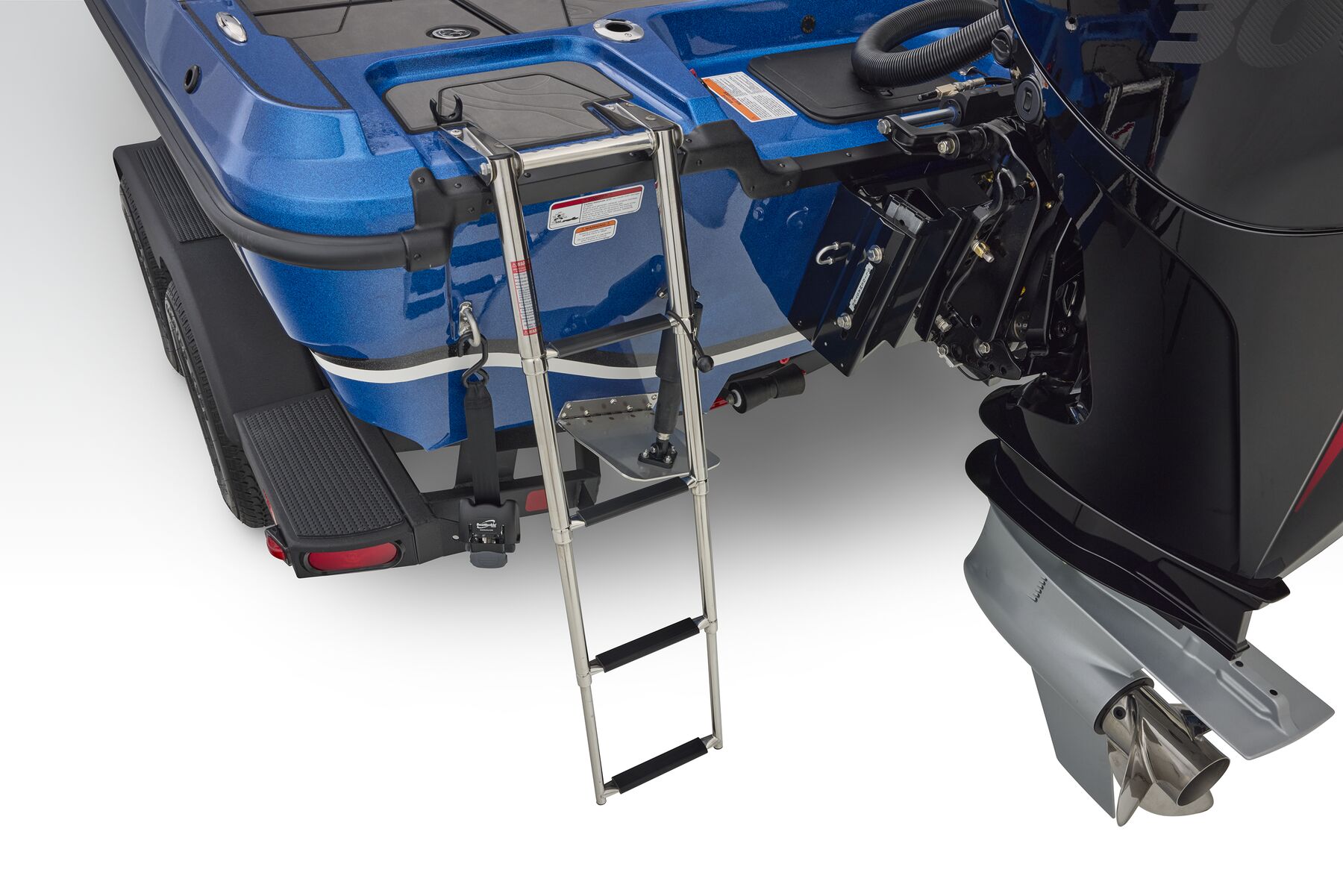

- Fold-down 4-step stainless steel reboarding ladder
- 4 stainless steel pull-up cleats
- Stainless steel bow & stern eyes
- Passenger grab handle
- Fire extinguisher
- Horn
Livewell System
- Bow 10-gal. (37.85 L) insulated baitwell w/removable bucket

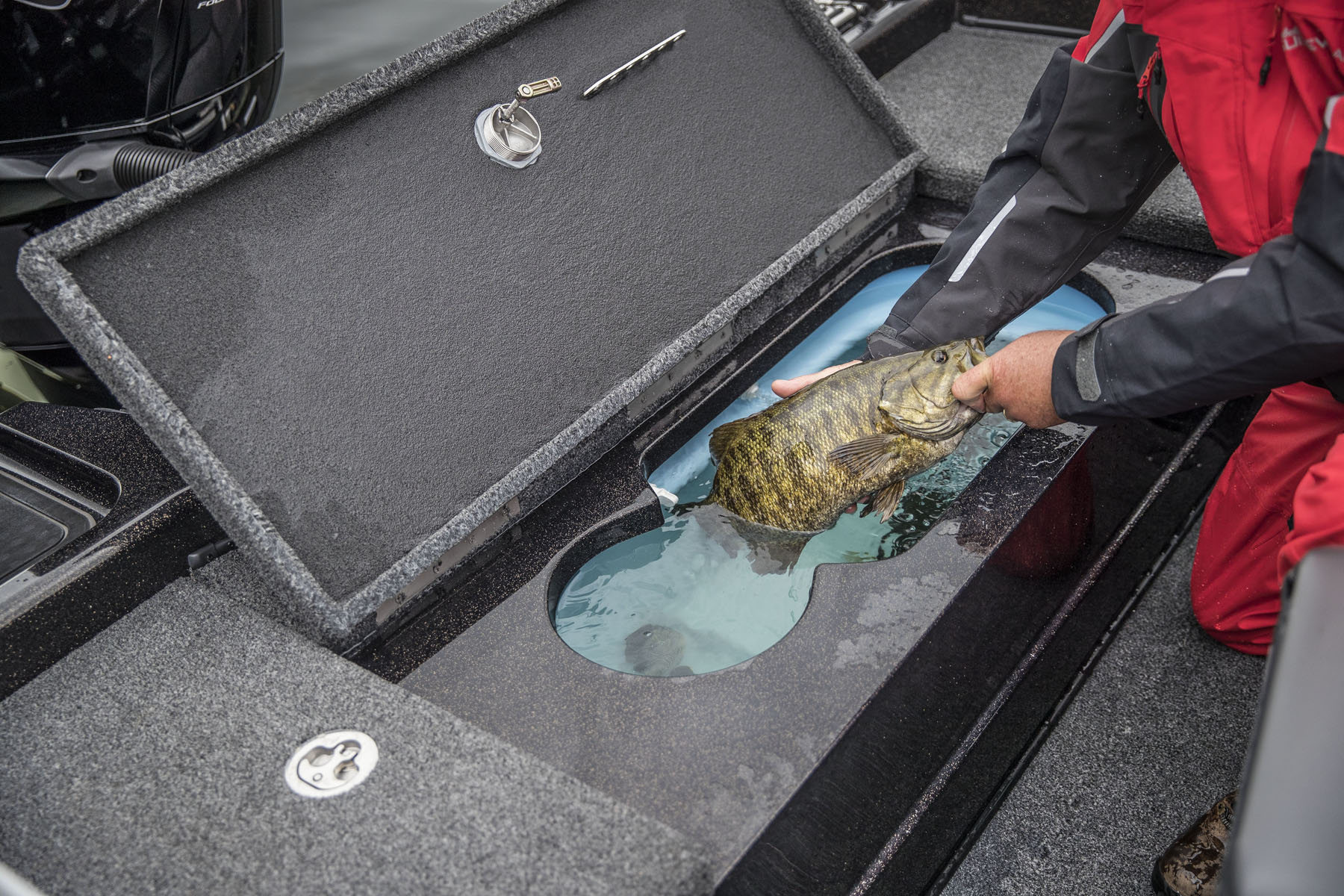

- Aft 26-gal. (98.42 L) insulated, rotomolded GUARDIAN™ anti-slosh livewell w/removable divider, bait bucket & rounded corners
- Two 500 GPH (1,892.71 LPH) aerator/fill pumps w/timers (1 for baitwell, 1 for livewell)
- Two 750 GPH (2,839.06 LPH) recirculator pumps w/timers (1 for baitwell, 1 for livewell)
- Livewell culling system
- Livewell control valve
- Overflow screens
- Pump-out systems
- Oxygen generators
- Livewell lid latching to keep lid closed at speed & in rough conditions
- Insulated aluminum lids w/welded corners
Trolling Motor

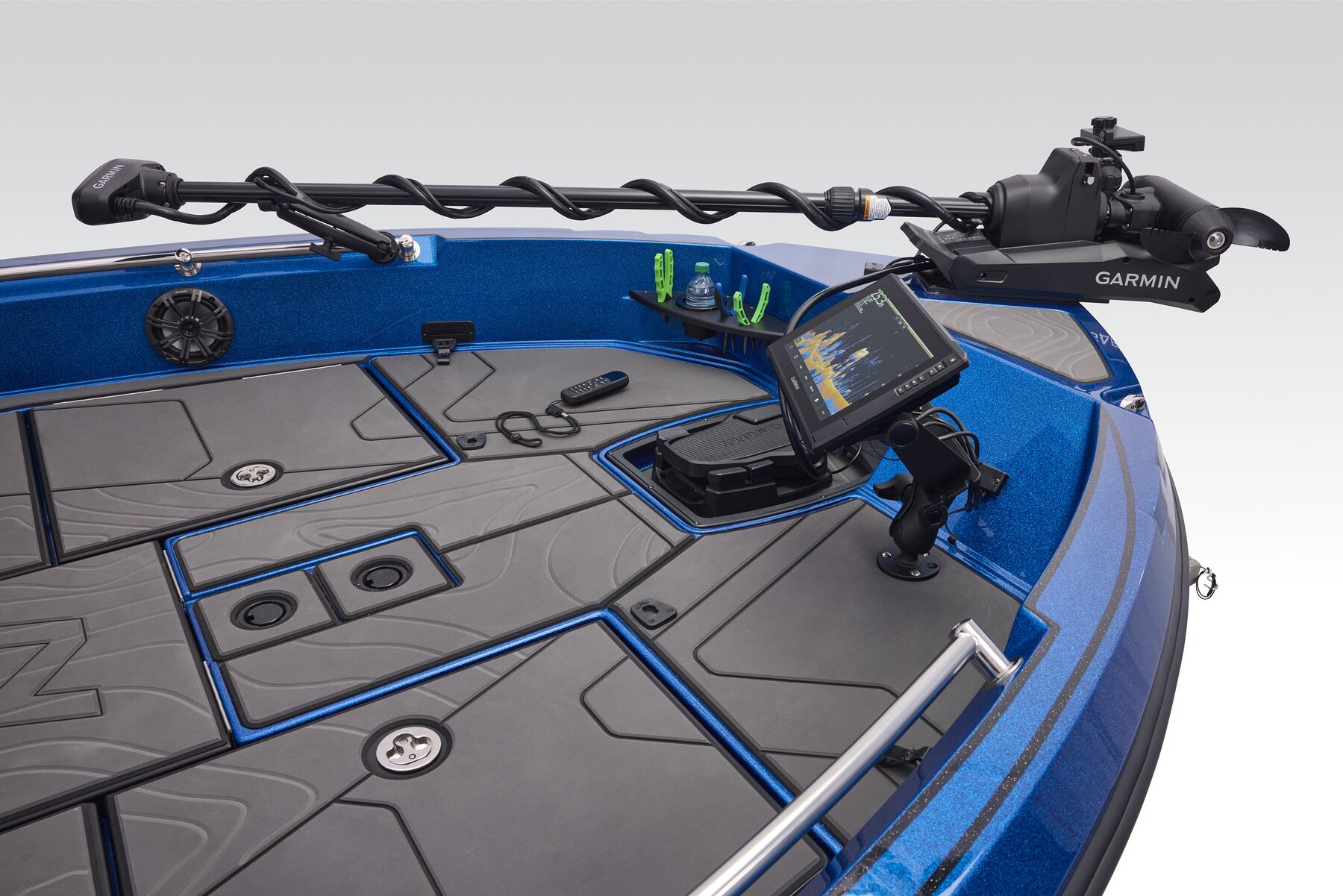

- Minn Kota® Terrova® 36V, 112-lb. (50.8 kg) thrust, 60" (1.52 m) composite shaft trolling motor w/Dual Spectrum CHIRP™
- Trolling motor pedal recess

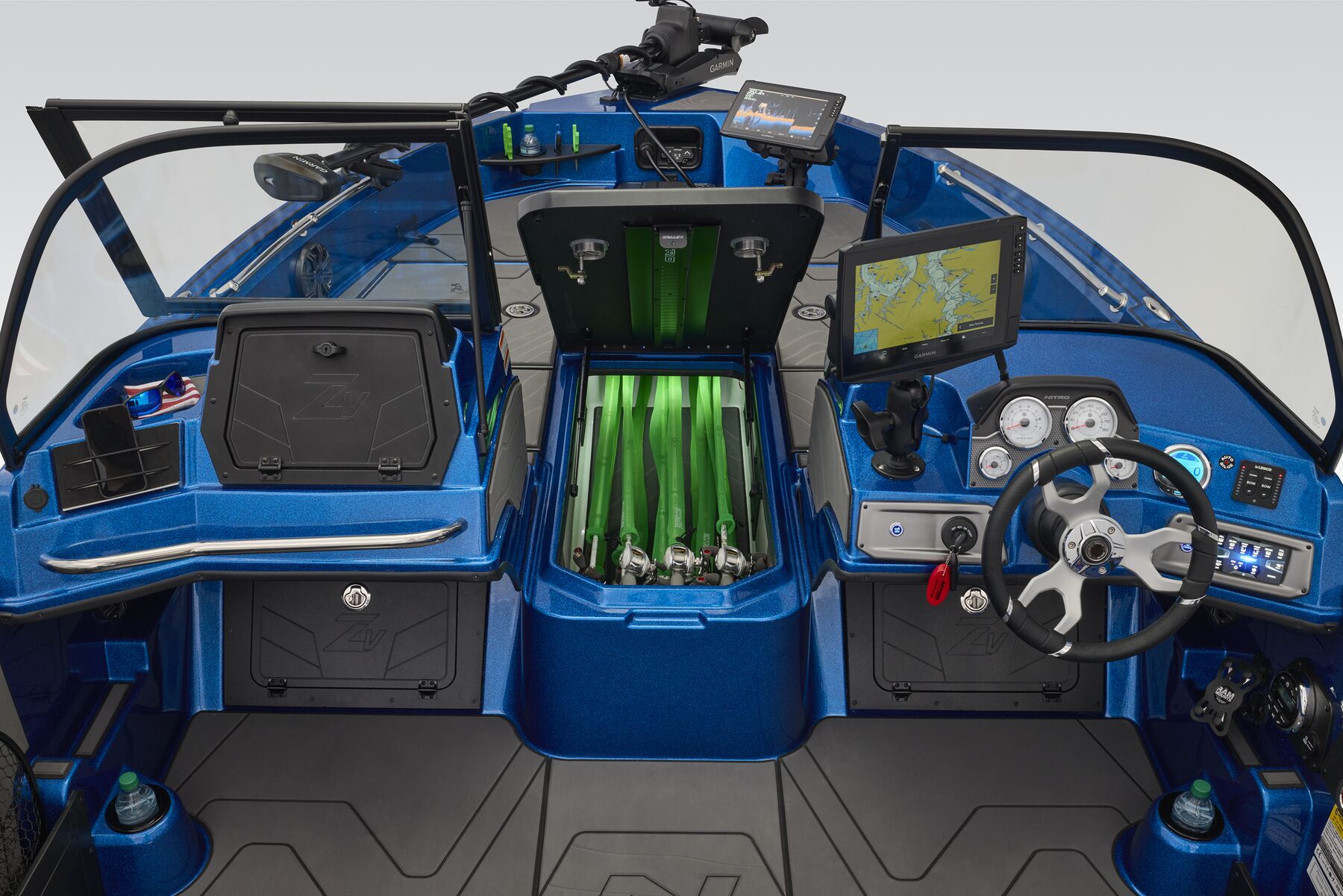

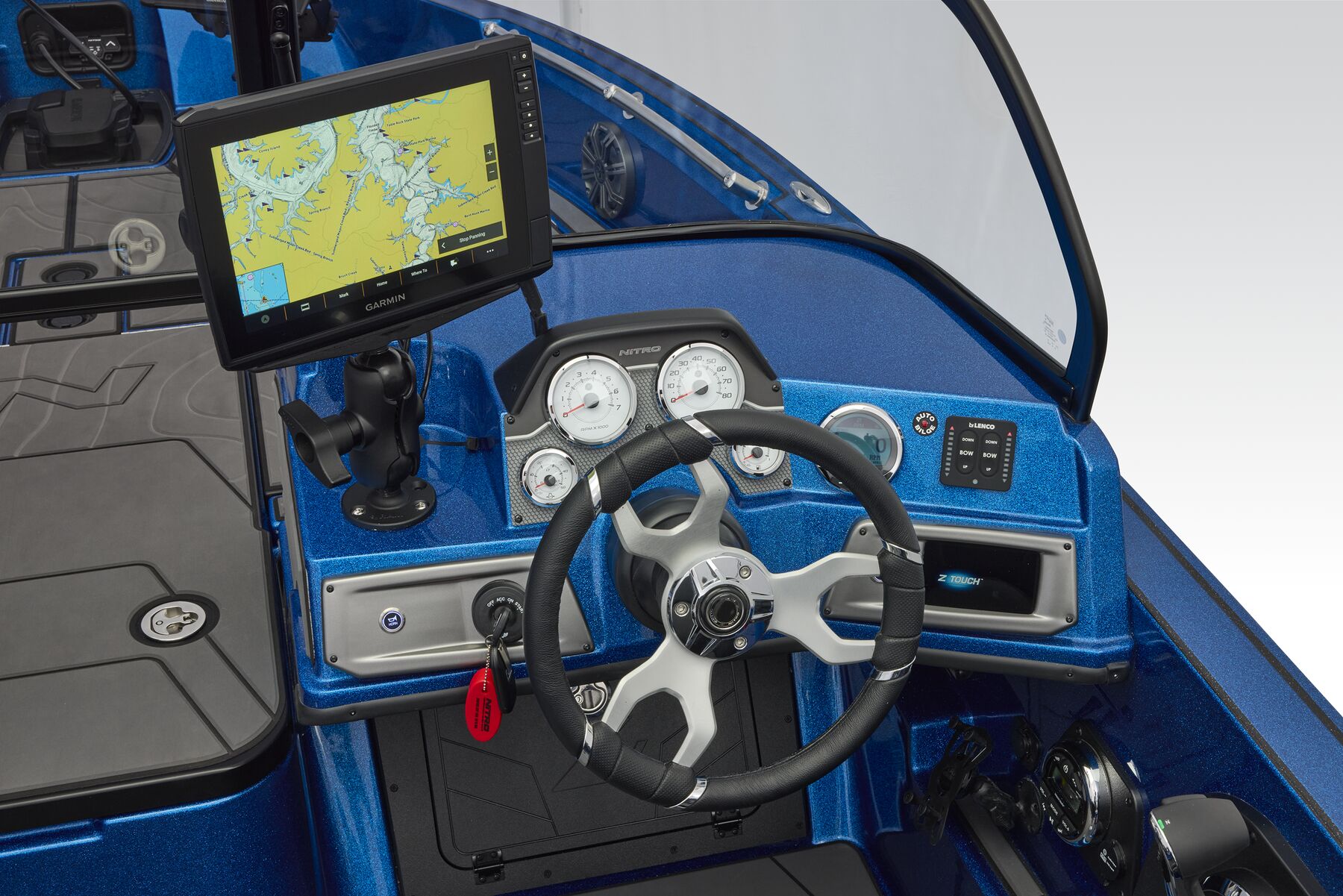

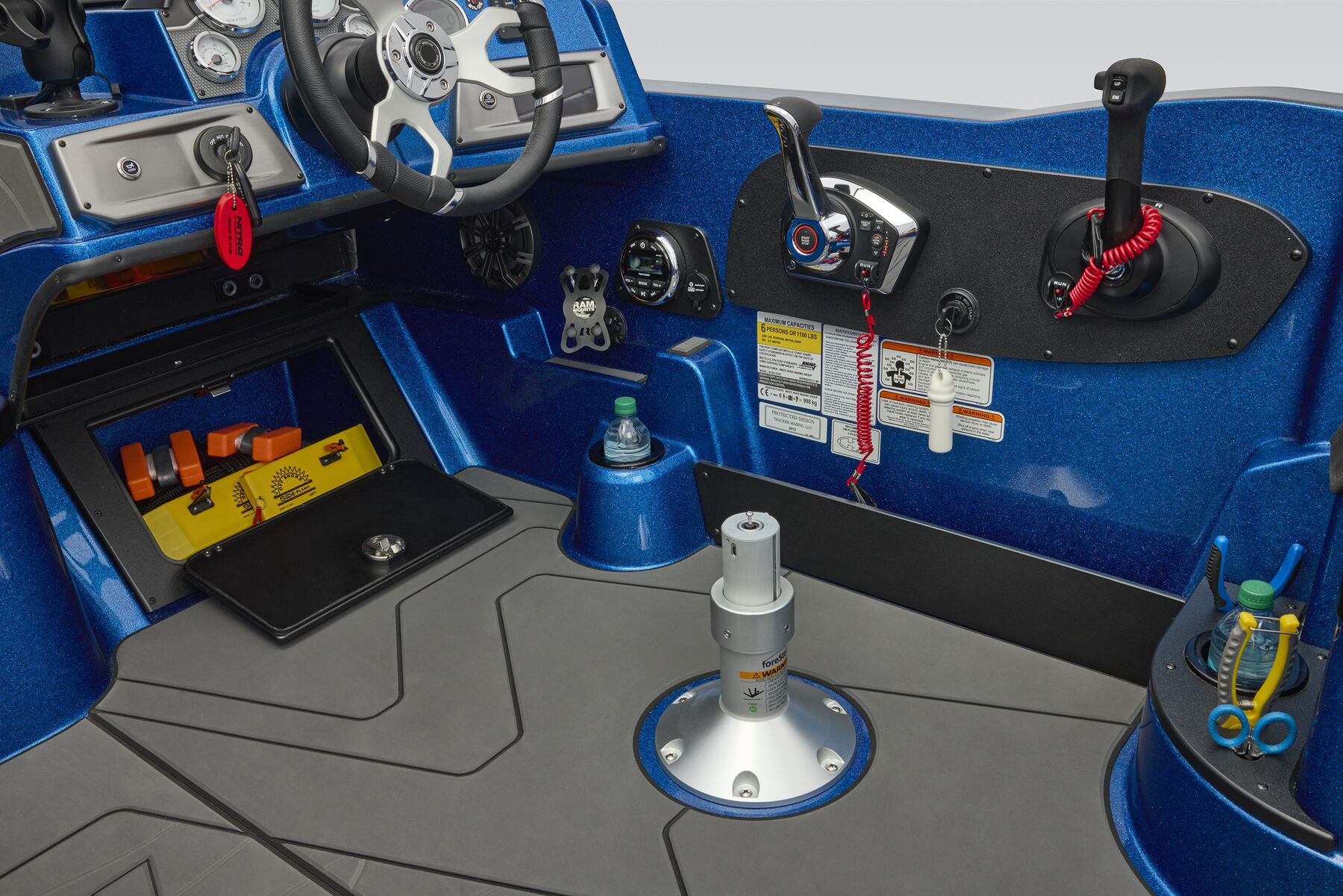

Console

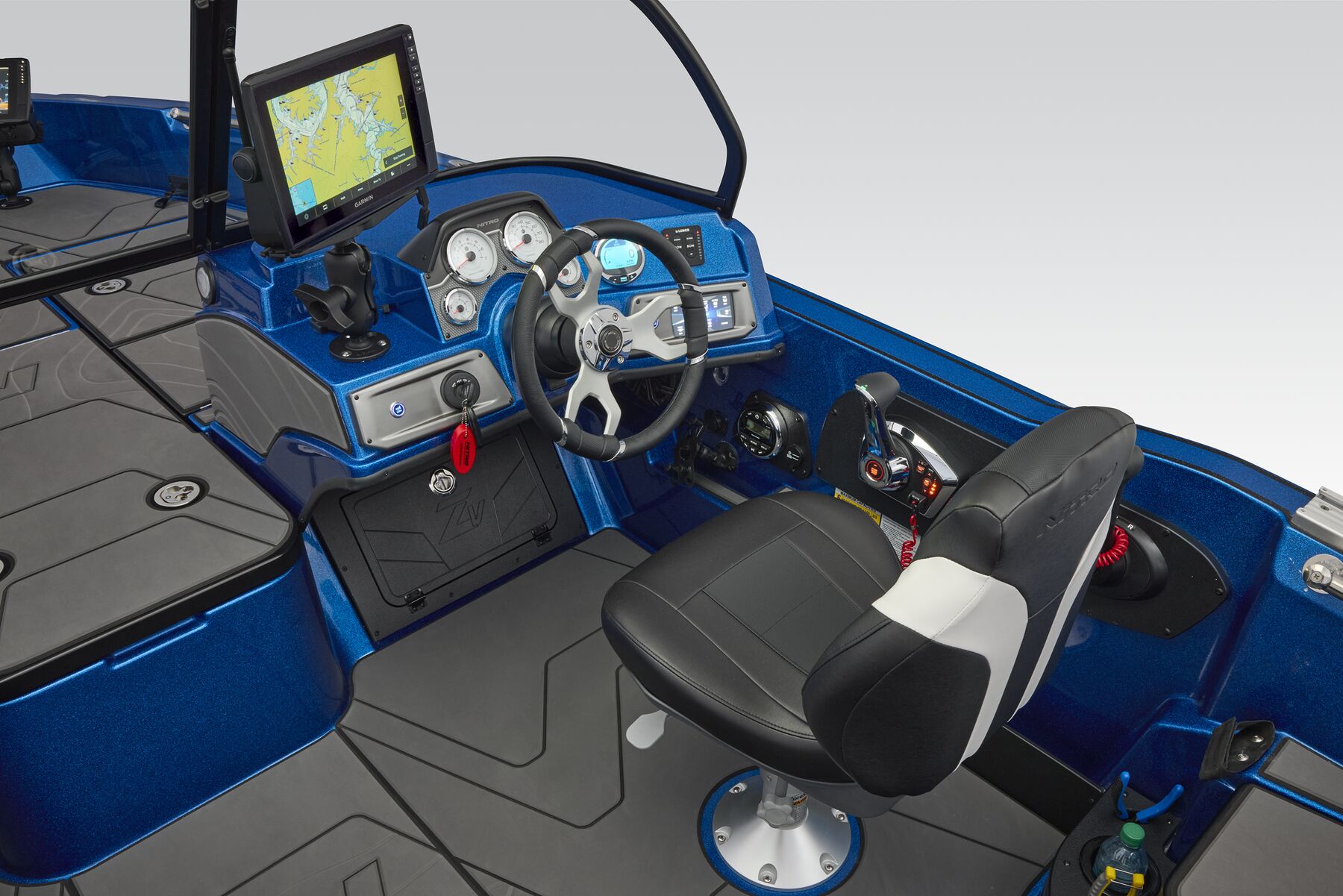

- Custom-molded port & starboard modular consoles w/finished bottom
- Walk-thru glass windshield

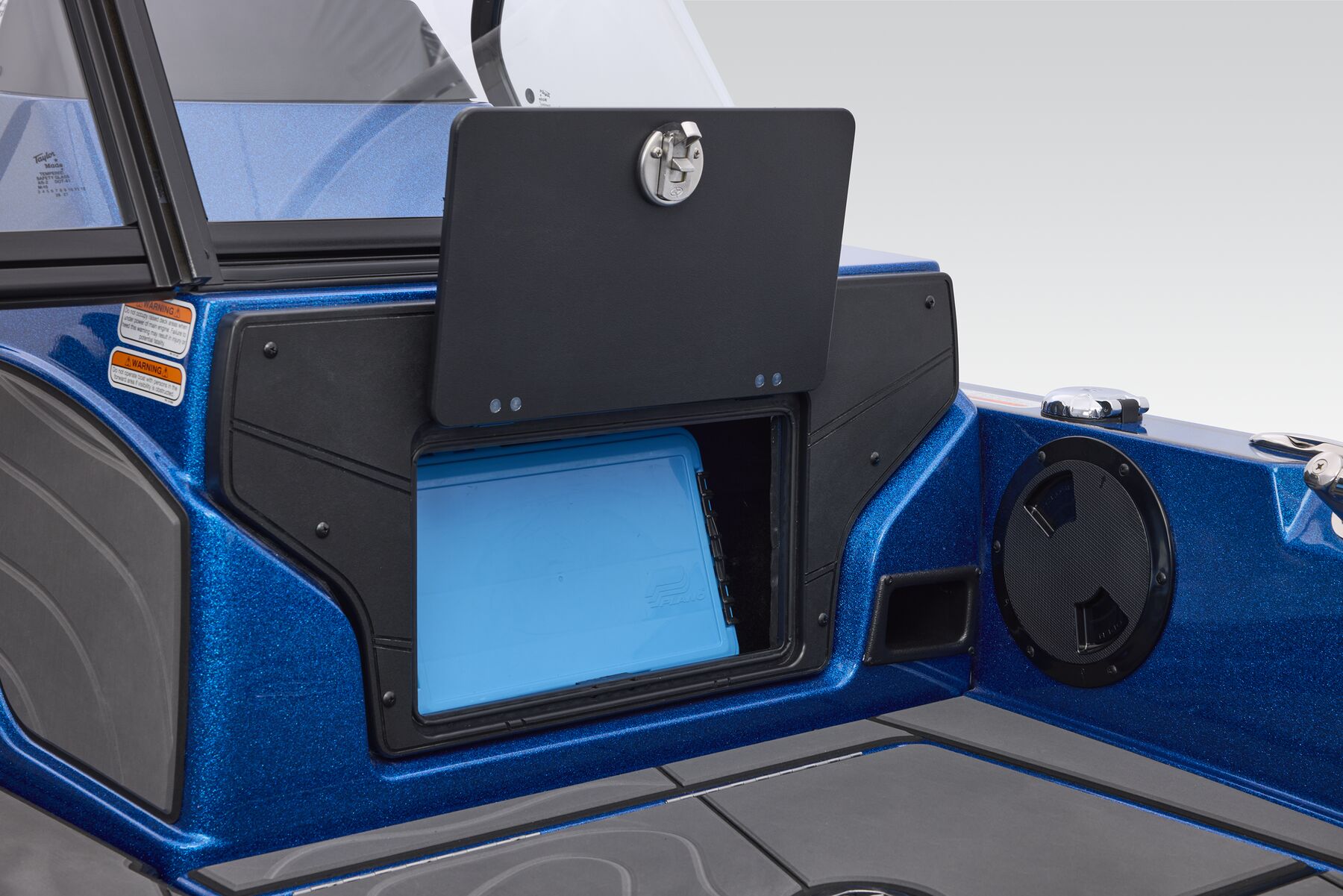

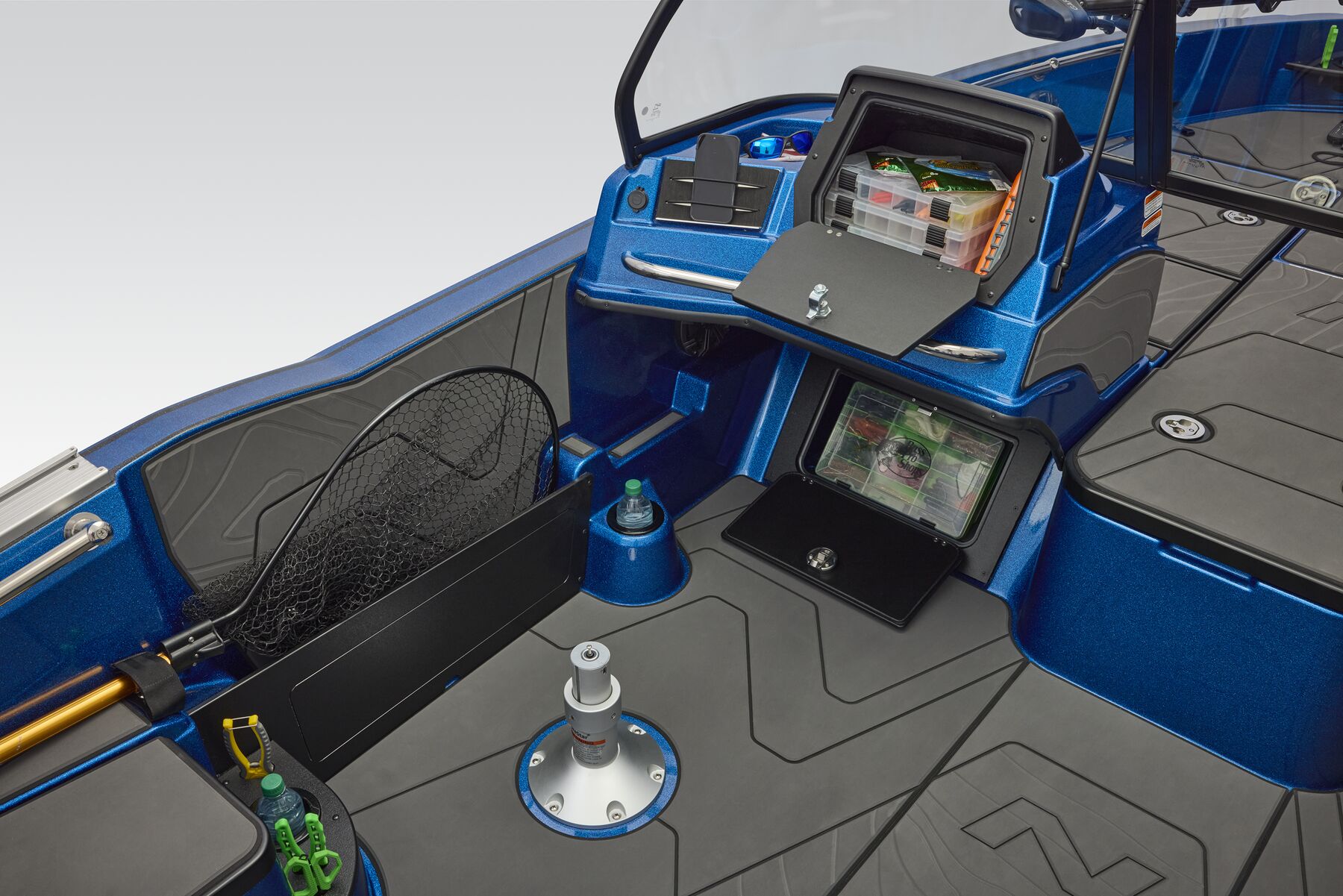

- Oversized carpeted, lockable port glovebox w/dual access

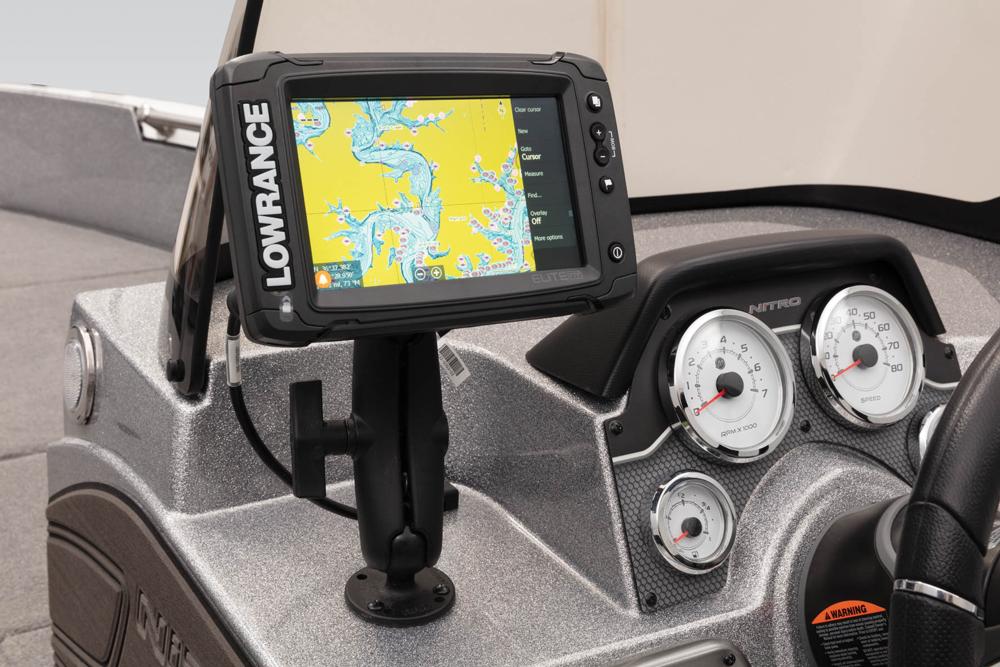

- Lowrance® Elite FS® 7 RAM®-mounted fishfinder w/ActiveImaging HD™
- 5" (12.7 cm) NITRO® Z-TOUCH™ digital touchscreen control w/1-touch boat controls including First Fish & Nite modes; master power; trim; lighting; bilge; livewells & more
- Key fob remote w/First Fish & Nite modes, trim control & master power on/off
- First Fish feature fills & recirculates livewell w/1 touch for stress-free livewell prep
- SmartCraft® gauges
- Verado® tilt electro-hydraulic steering
- Below-console RAM® X-Grip® phone holder
- Port & starboard below-console shelves
- Side-mounted LED courtesy light
- Space to mount additional electronics

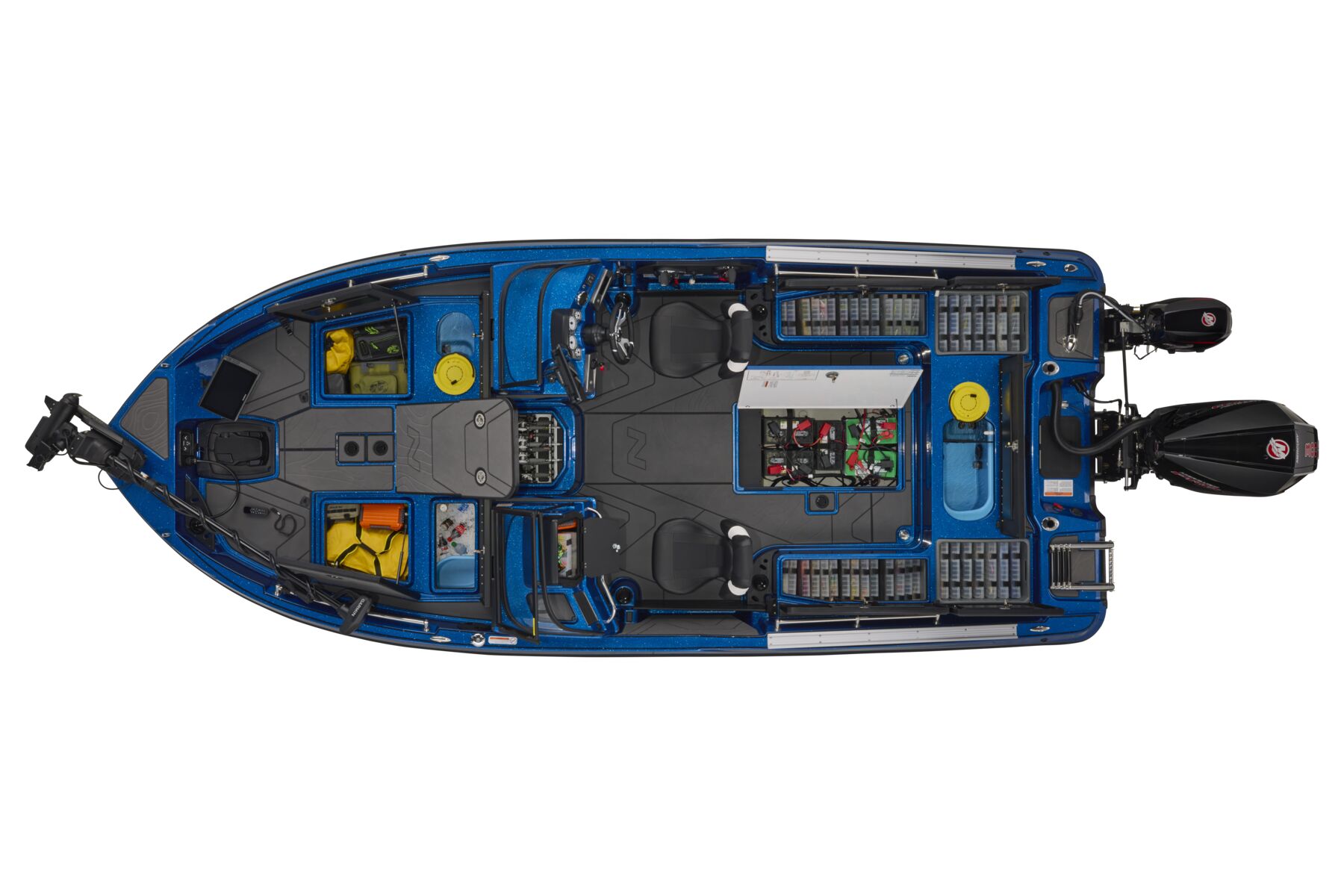

Interior
- Ergonomic bow panel for easy electronic mounting

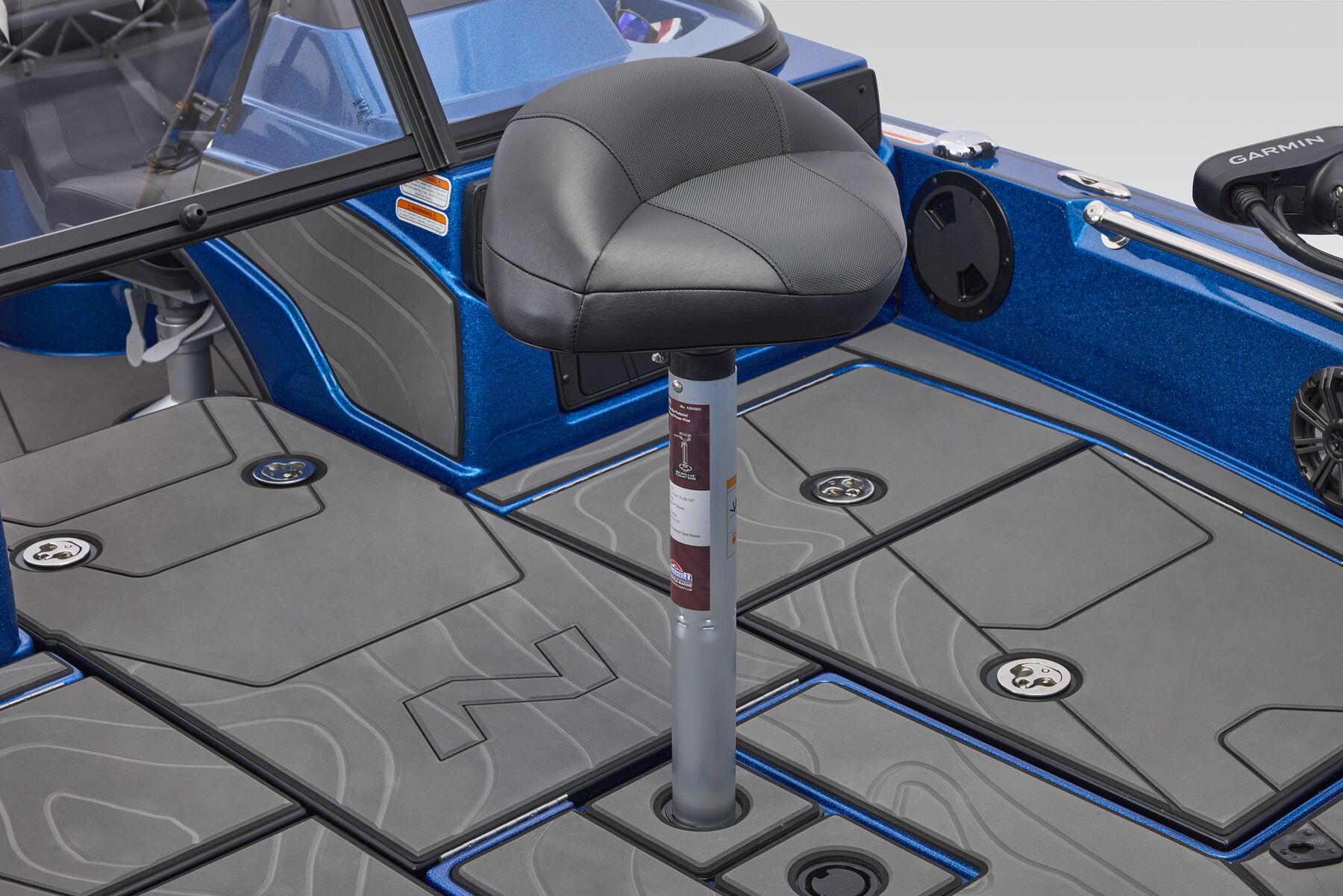

- Bike seat w/hydraulic pedestal

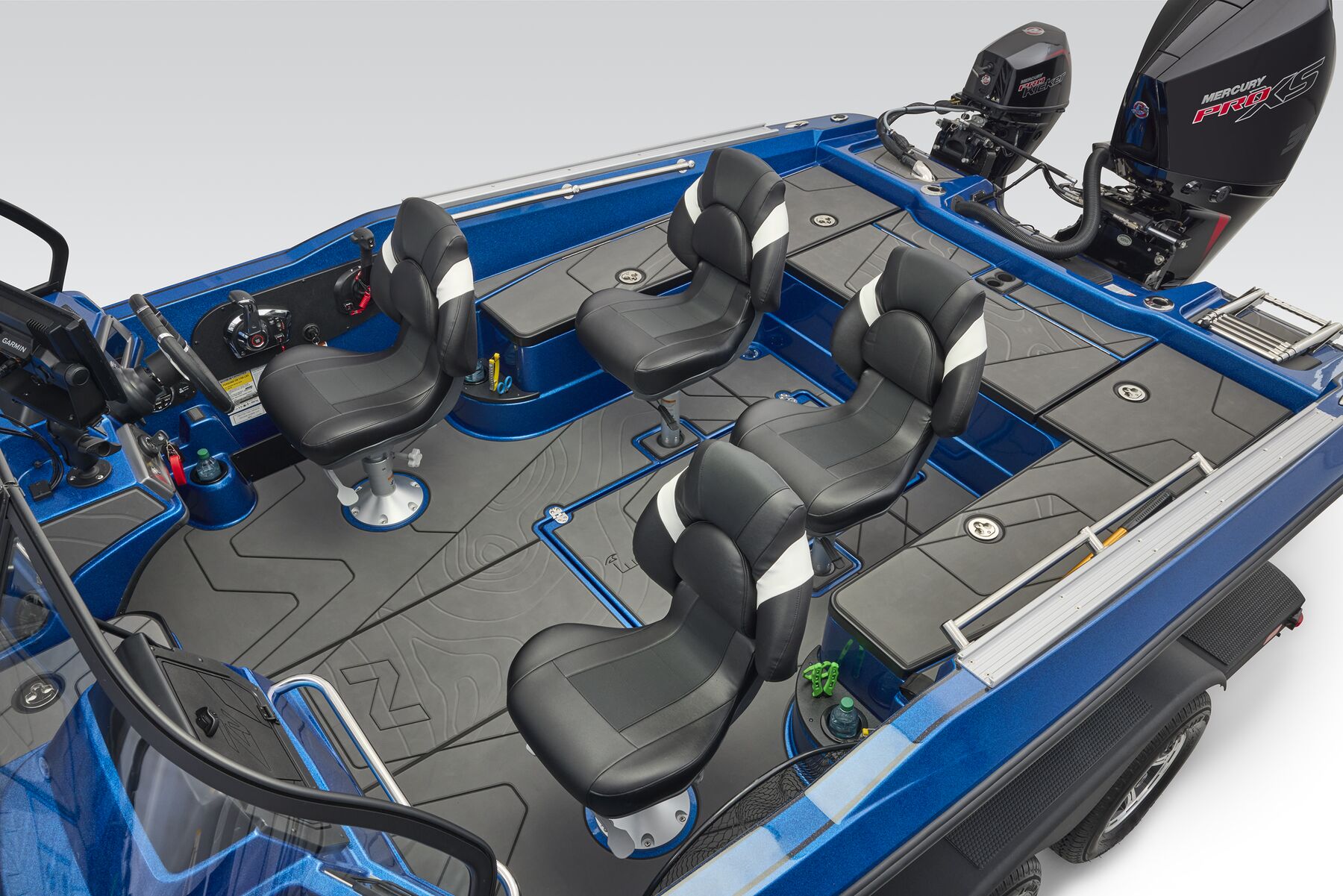

- Folding Centric X driver, passenger & fishing seats
- Stainless steel bow & aft rails (port & starboard)

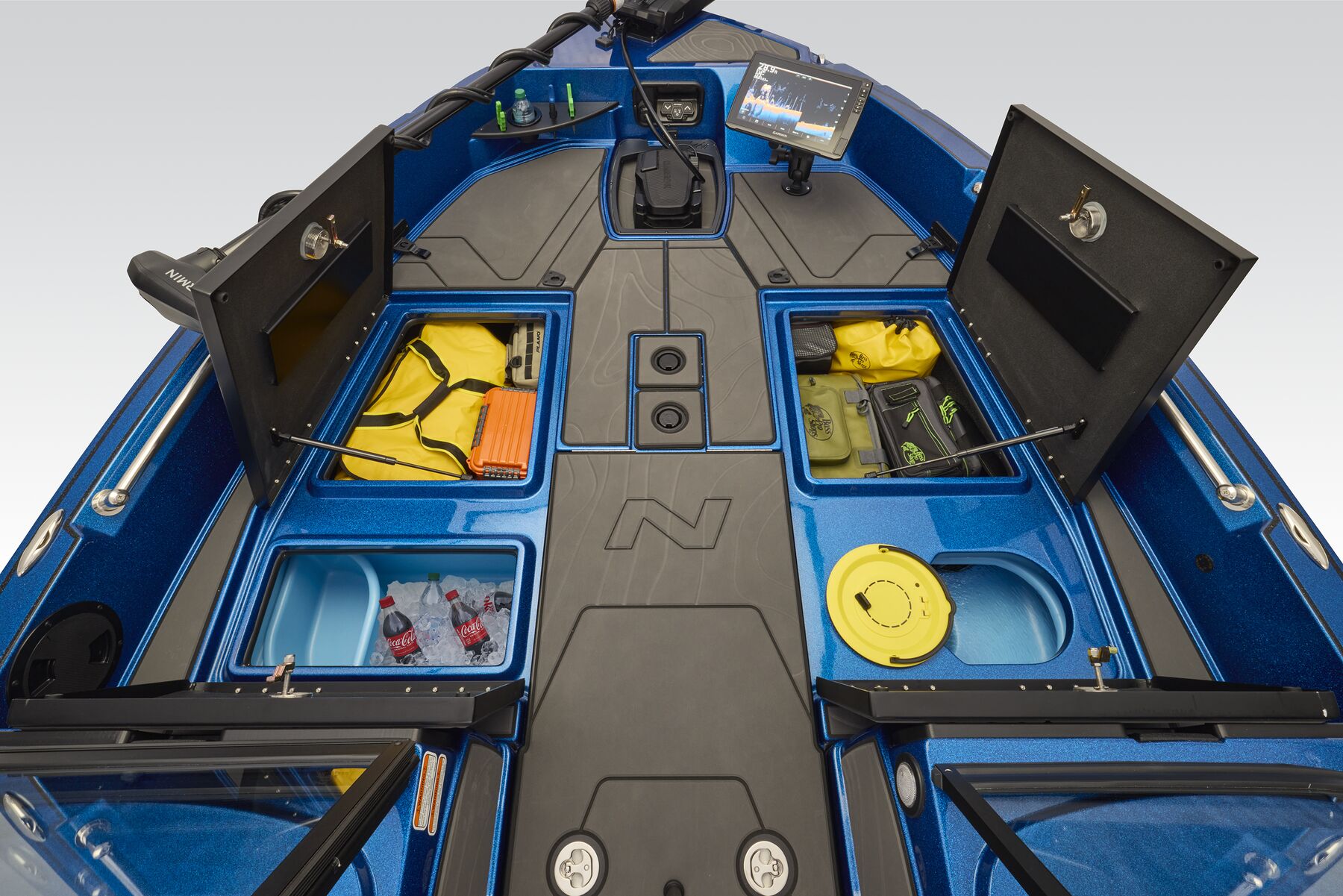

- Bow port & starboard lockers w/lift assists & retractable rod holders w/port tapered rod tube to protect rod tips
- Bow port cooler w/removable tray
- Bow & aft lockable storage compartments
- 2-layer center rod locker for rods up to 8' (2.44 m) w/tapered rod tubes to protect rod tips
- Extra-large integrated port net holder
- Passenger rod ramp w/rod handle organizer & hold-down strap
- Midship port & starboard insulated storage boxes designed to accept tackle trays
- Footrest w/storage under console

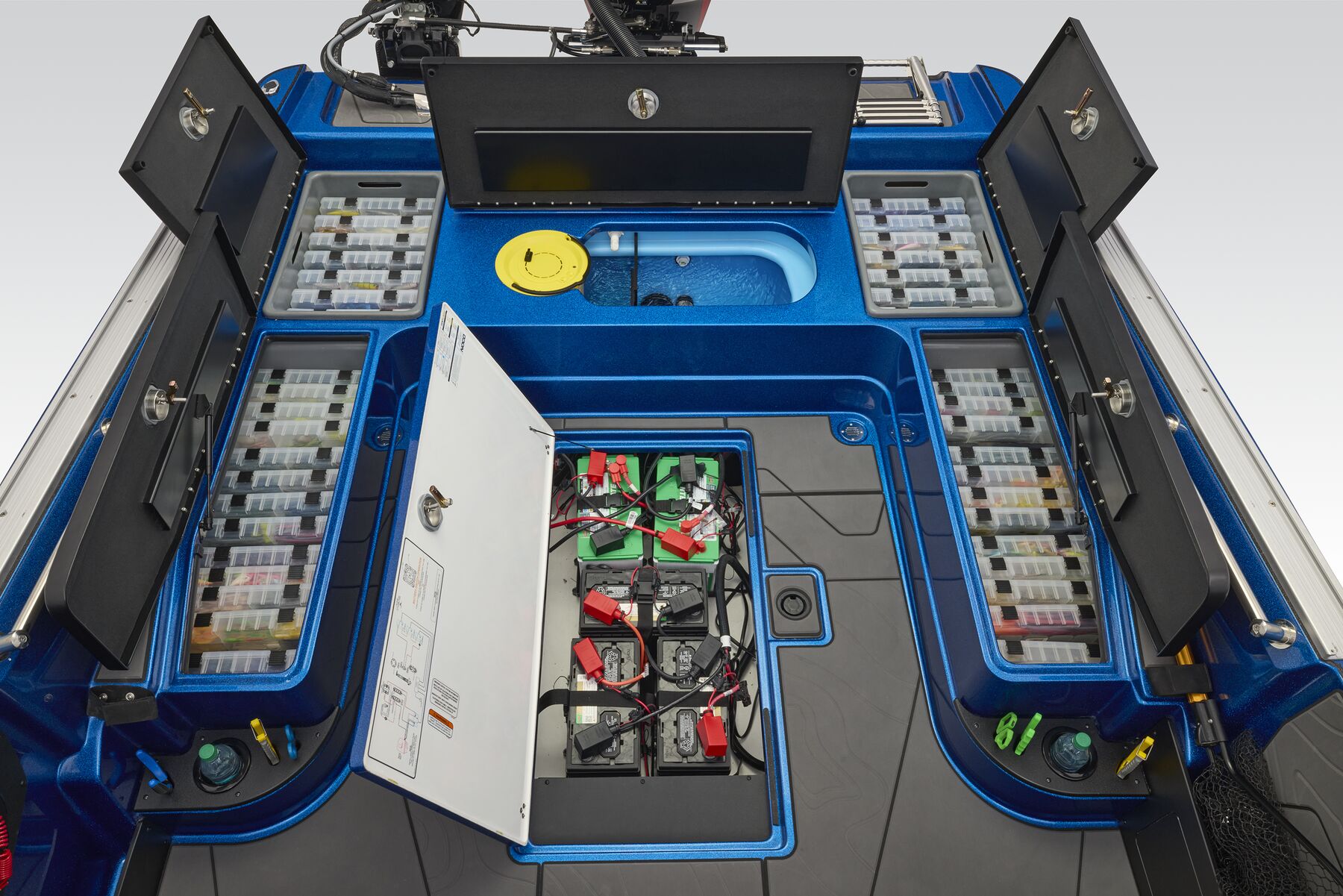

- Midship in-floor storage for 5 batteries
- Starboard tool holder
- Rod holders for aft rail

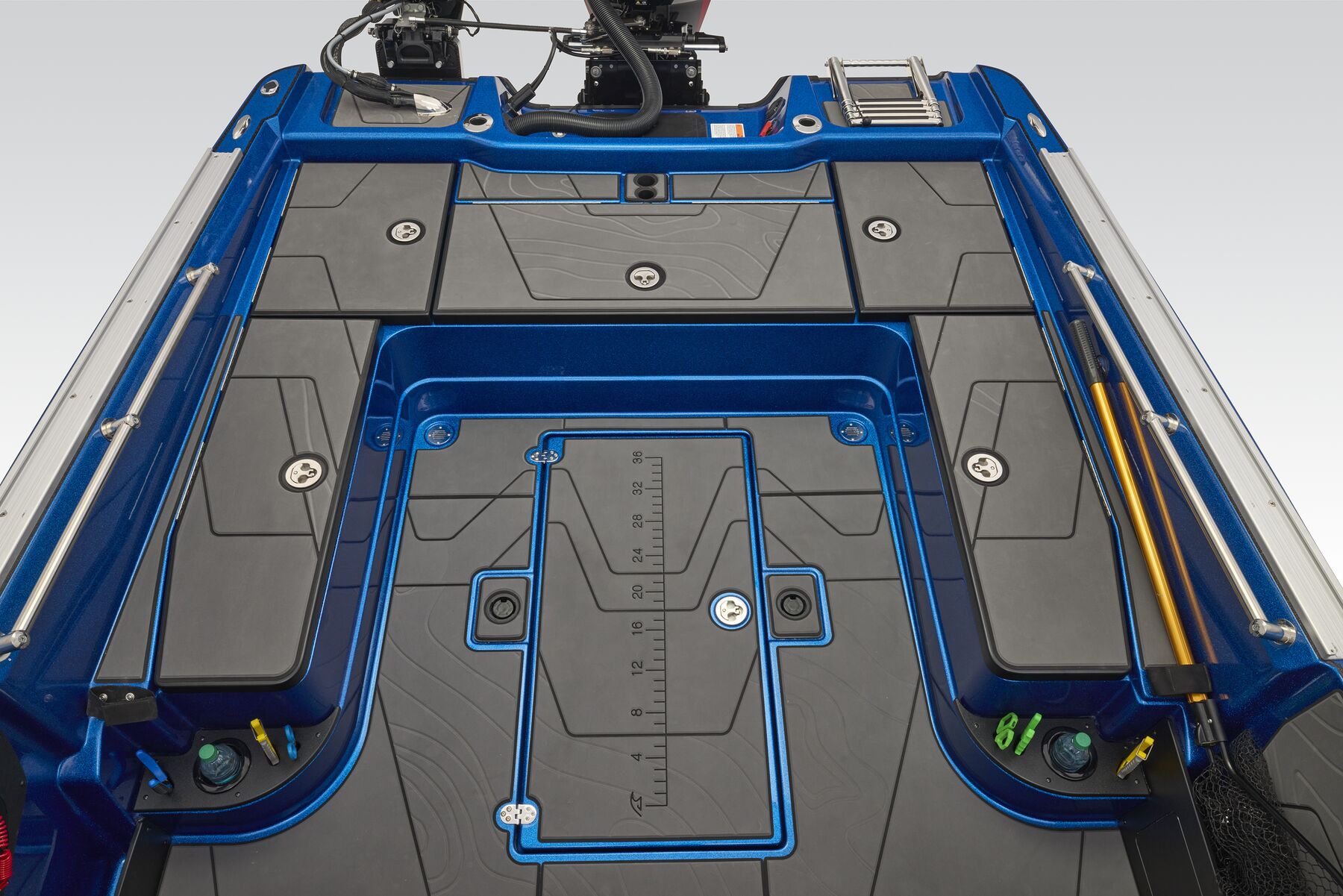

- Built-in tournament ruler & holder
- 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays
- Easy access to rigging & pumps
- Insulated aluminum lids w/welded corners
- 24-oz. (.68 kg) plush, marine-grade, cut pile carpet on decks & floor
- Stainless steel lockable latches
Performance

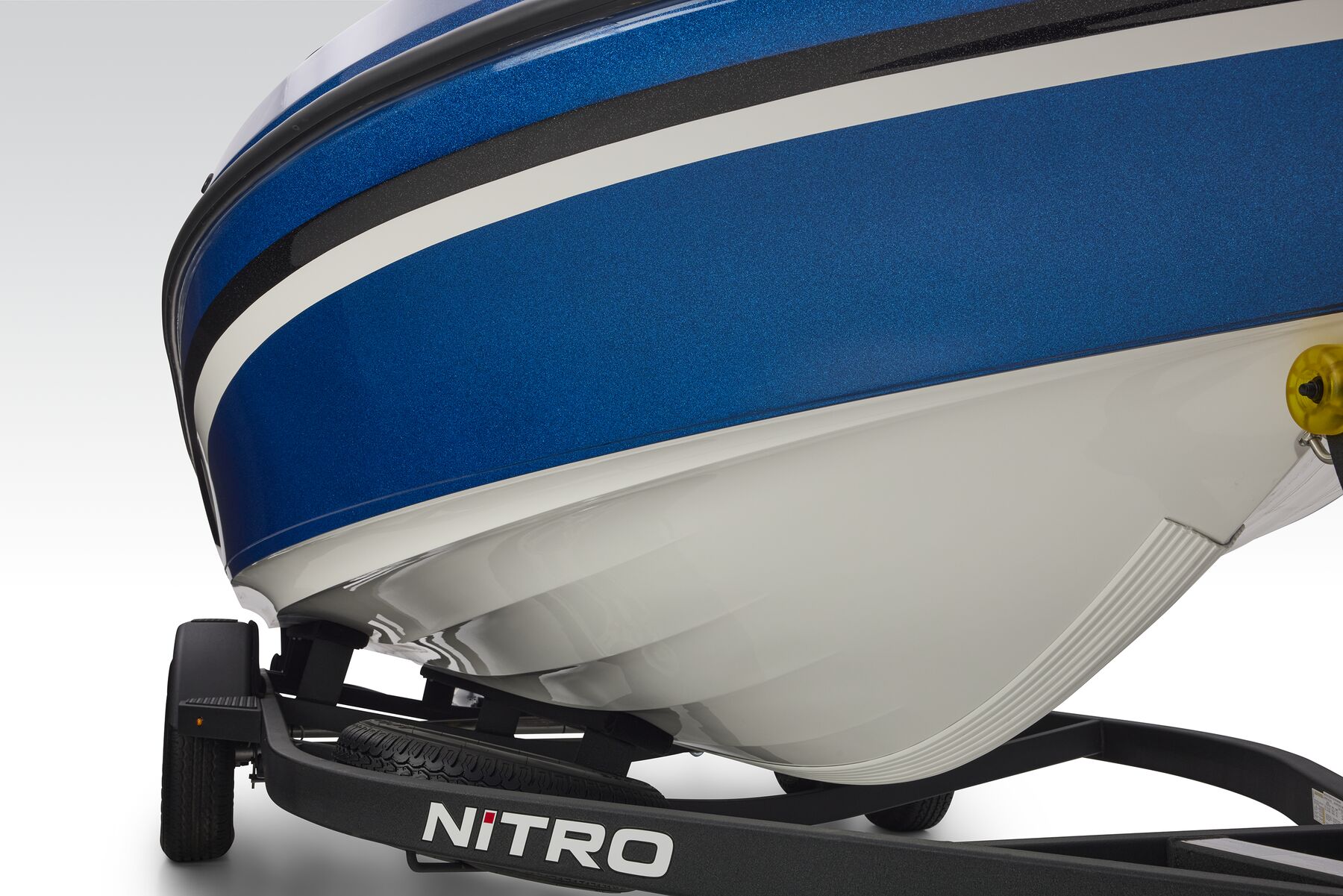

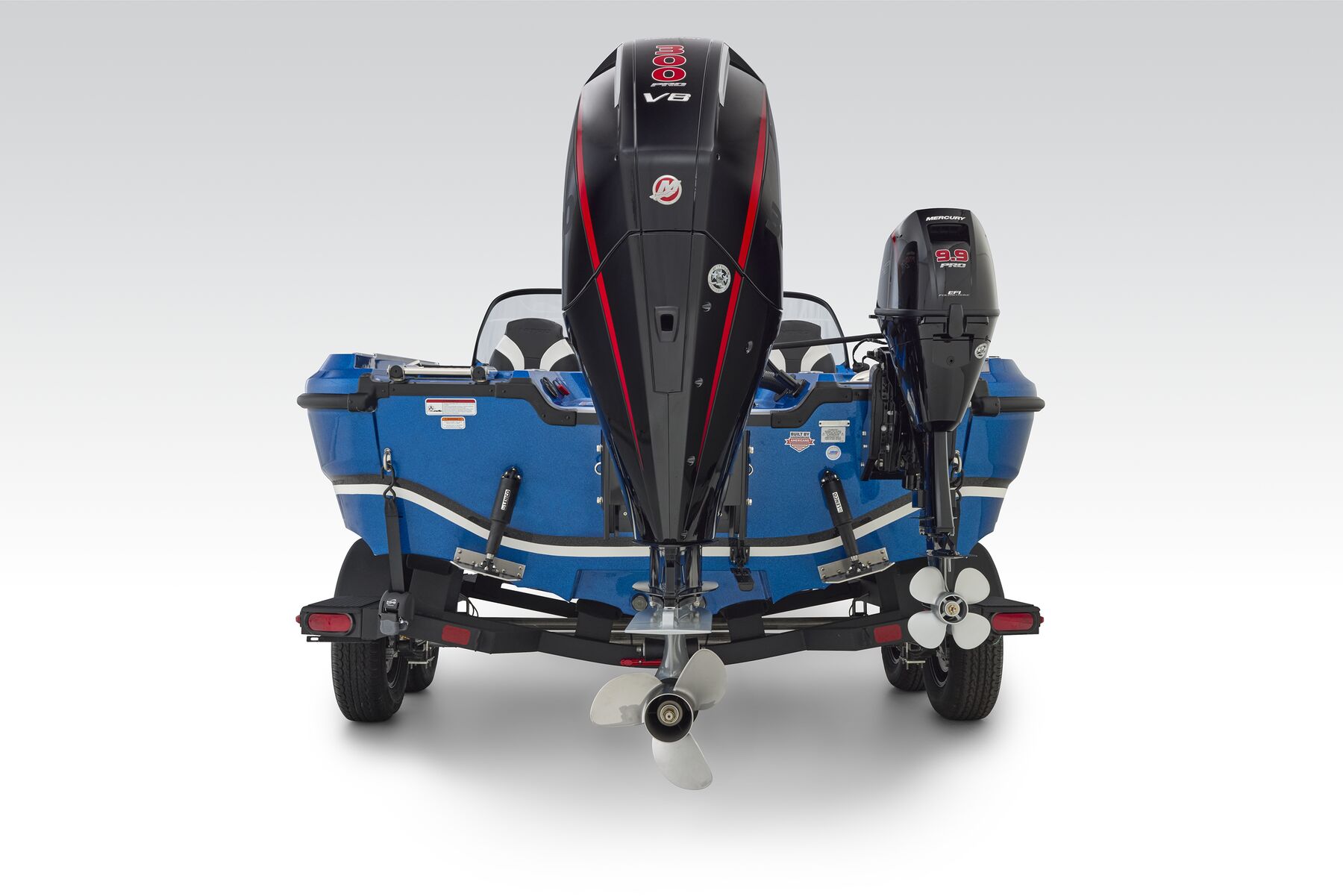

- Deep V NVT™ performance hull w/RAPID PLANING SYSTEM™ (RPS™) transom
- 10" (25.4 cm) R&R Design Slidemaster adjustable jack plate; 8" (20.32 cm) w/225HP motor
- Transom designed for Kicker motor application
- Rigging tube
- Stainless steel propeller
Construction & Exterior
- 100% composite deck core w/superior thermal stability & strength-to-weight ratio
- Deck & hull chemically bonded & mechanically fastened
- Gelcoated stringer/liner system
- Foam-filled hull for optimal buoyancy & safety
- Full-width fiberglass-encapsulated composite transom
- Hand-laid, heavy-duty performance hull w/reinforced sides
- Cisco accessory-mounting track system
- NEW Black hardware
Electrical
- Redundant automatic bilge pump system w/dual 1,600 GPH (6,056.66 LPH) pumps
- Bow panel w/trolling motor receptacle, navigation light, anchor light & trim switches
- Bow navigation lights integrated into gunnels
- Manual LED-lighted bow storage compartments
- Remote drain plug
- Heavy-duty Interstate® cranking battery
- 3 heavy-duty Interstate® trolling batteries
- NOCO® GB40 jump starter pack
- 4-bank, 40-amp battery charger
- 6-gauge trolling motor wiring w/50-amp circuit breaker
- Automotive style, labeled fuse panel w/cover
- Master power switch
- Ventilation fan system in bow storage
- Waterproof Deutsch connectors on gauges
- Water- & abrasion-resistant connectors
- Console-mounted 12V outlet
Trailer

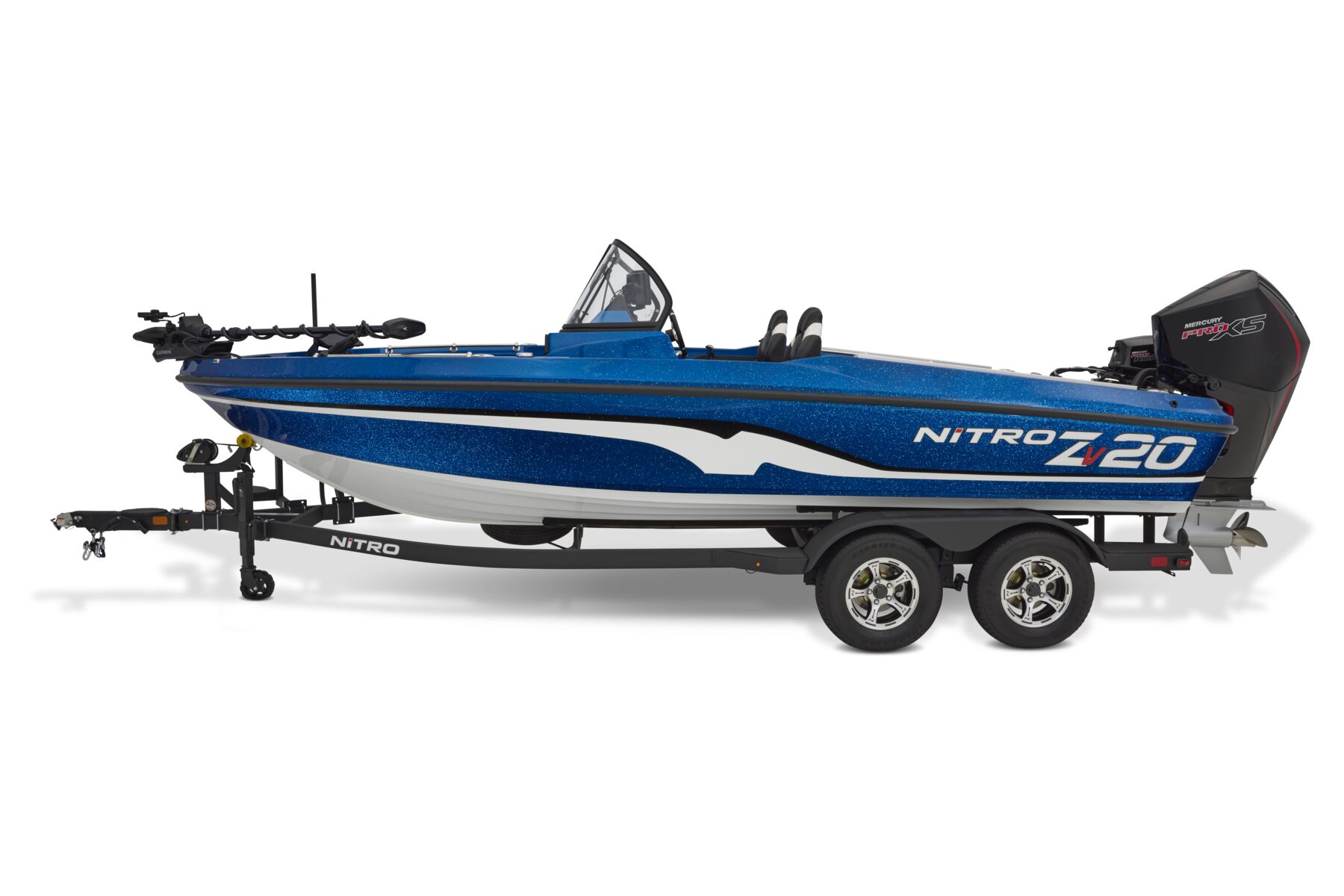

- Custom-fit, tandem-axle steel NITRO® trailer
- 7-pin connector

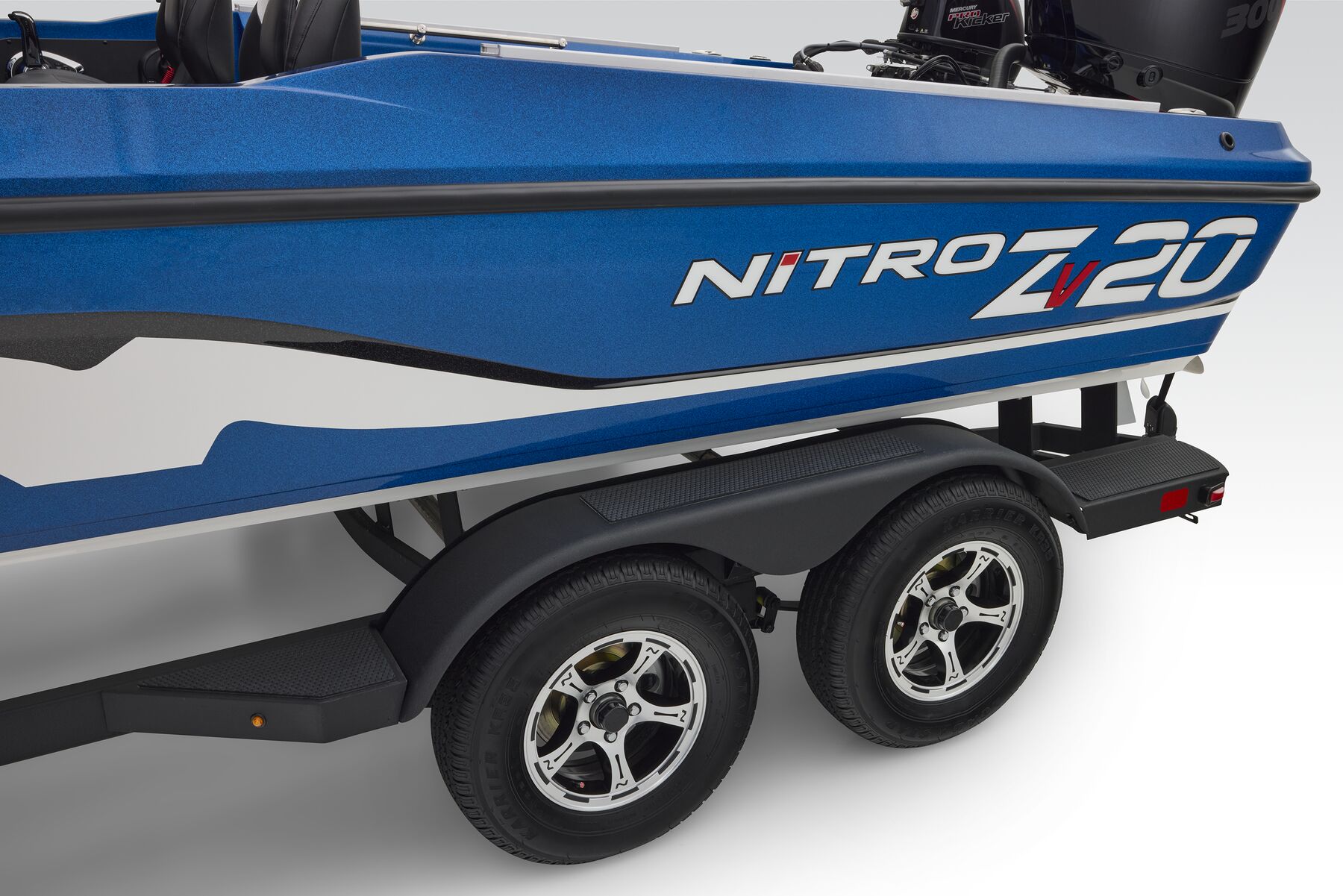

- 14" (35.56 cm) NITRO® aluminum wheels w/radial tires
- Integrated boarding step w/safety handle for easier boarding/reboarding at bow while boat is on trailer
- Boarding ladder
- Surge disc brakes on both axles
- All-welded rectangular GALVASHIELD® frame

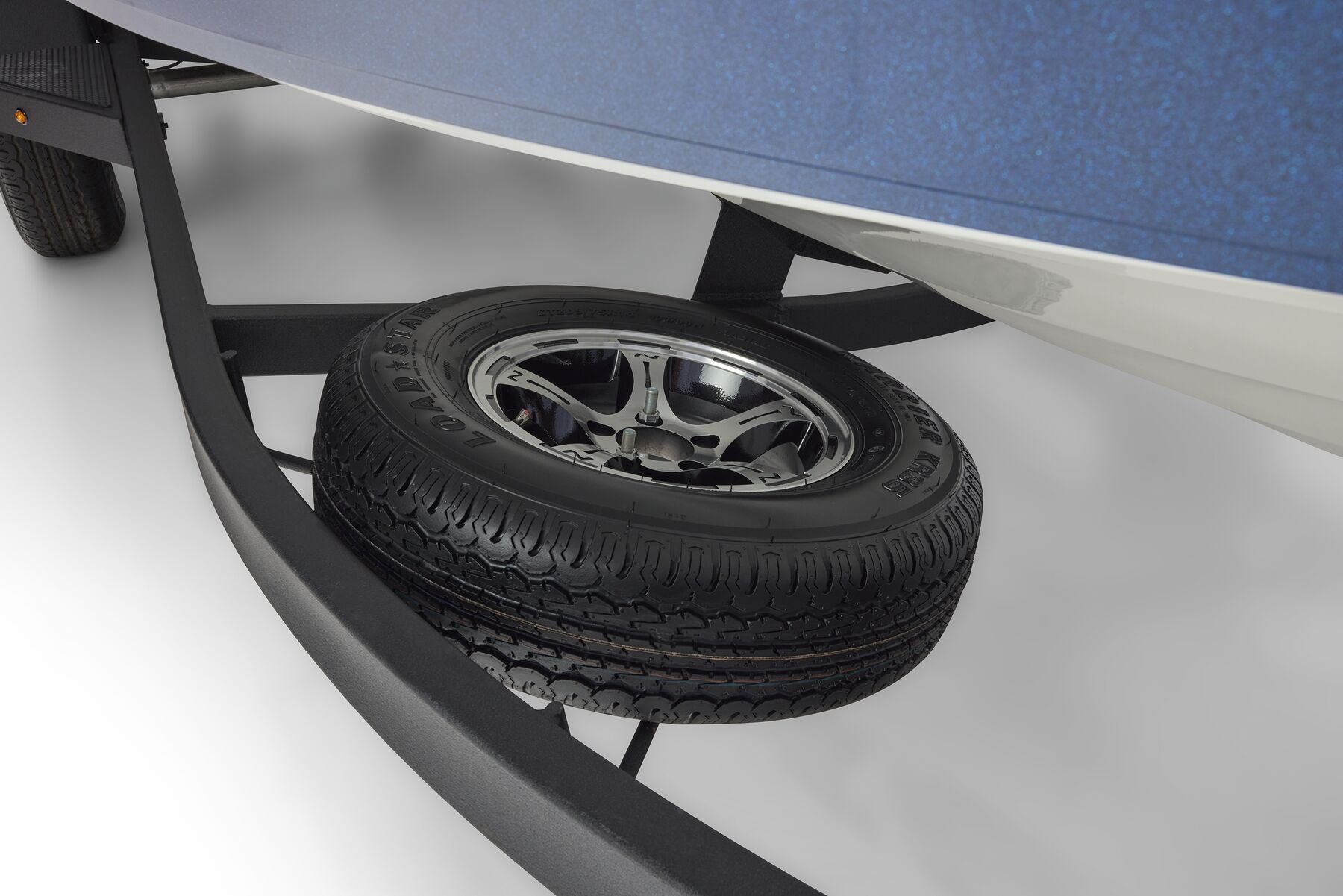

- Spare tire carrier w/matching spare tire
- Space-saving swing-away tongue to reduce storage length
- 1,500-lb. (680.39 kg) swing-up locking jack w/swivel wheel
- Heavy-duty winch w/non-binding nylon strap & bow safety strap
- Outboard motor support to reduce hull & transom stress while towing
- Carpeted bunks & fender boards to protect hull
- Submersible LED lights
- Retractable transom tie downs
- Safety cables
Options
* PREVIOUS MODEL YEAR IMAGES SHOWN
