2021

Z17

w/ 115 ELPT Pro XS® FourStroke Mercury® Pro XS®

Boat, Motor, & Trailer

View Price w/ Prep & Freight:

NO HAGGLE NO HASSLE® National Price Base Price	$27595 USD

NO HAGGLE NO HASSLE® National Price

Base Price

$27595

USD

Your Price w/ Prep & Freight:	USD

Overview

The nimble NITRO® Z17 is a fiberglass bass boat that’s easy to fish, easy to tow and priced just right for first-time owners and amateur tournament competitors. It shares many of the features of the larger Z Series boats, including our revolutionary NVT™ hull, an insulated cooler, lockable rod storage, tackle storage and custom seating.

The deck is optimized for tournament angling with a lockable center rod organizer for rods up to 7’ 6”, as well as carpeted, lockable port and starboard storage boxes for tackle and rods up to 7’. Plus, a massive 23-gallon NITRO-exclusive GUARDIAN™ aerated, divided and timed livewell to keep your fish healthy all the way to the weigh-in.

Download Brochure

Specifications

Standard | Metric

Length	5.28 m	17' 4''
Length	5.28 m	17' 4''
Beam	2.29 m	7' 6''
Bottom Width	1.83 m	6'
Max. Recommended HP	115 HP
Fuel Capacity	90.84 L	24 gal.
Max. Person Capacity	3 persons
Max. Person Weight	208.65 kg	460 lbs.
Max. Person, Motor & Gear Weight	498.95 kg	1100 lbs.
Interior Depth	41.275 cm	16.25''

Transom Height	52.07 cm	20.5''
Deadrise	16 degrees
Draft	38.1 cm	15''
Average Dry Weight	657.71 kg	1450 lbs.
Average Package Weight	1202.02 kg	2650 lbs.
Bridge Clearance	1.88 m	6' 2''
Package Height	1.61 m	5' 3.5''
Package Width	2.43 m	7' 11.5''
Towing Length	7.21 m	23' 8''
Storage Length	6.32 m	20' 9''

Motor Options

AVAILABLE MOTOR	ESTIMATED SPEEDS
Mercury® Pro XS®
115 ELPT Pro XS® FourStroke	-	$27595 USD	Select Dealer
115 ELPT Pro XS® FourStroke Command Thrust	-	$28145 USD	Select Dealer

Standard Features

Comfort, Convenience & Peace of Mind

Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
EPA-compliant fuel system
Non-skid bow & stern mats
4 stainless steel, angled cleats flushed w/gunnels
2 grab handles (1 at passenger, 1 at transom)
Fire extinguisher
Horn
Paddle

Livewell System

Aft 23-gal. (87.06 L) GUARDIAN™ aerated livewell w/divider & timer
500 GPH (1,892.71 LPH) livewell recirculation/pump-out system
500 GPH (1,892.71 LPH) aerator/fill pump
Rotomolded w/rounded corners

Trolling Motor

Minn Kota® Edge® 12V, 55-lb. (24.95 kg) thrust, 45" (1.14 m) shaft foot-control trolling motor
Trolling motor pedal recess

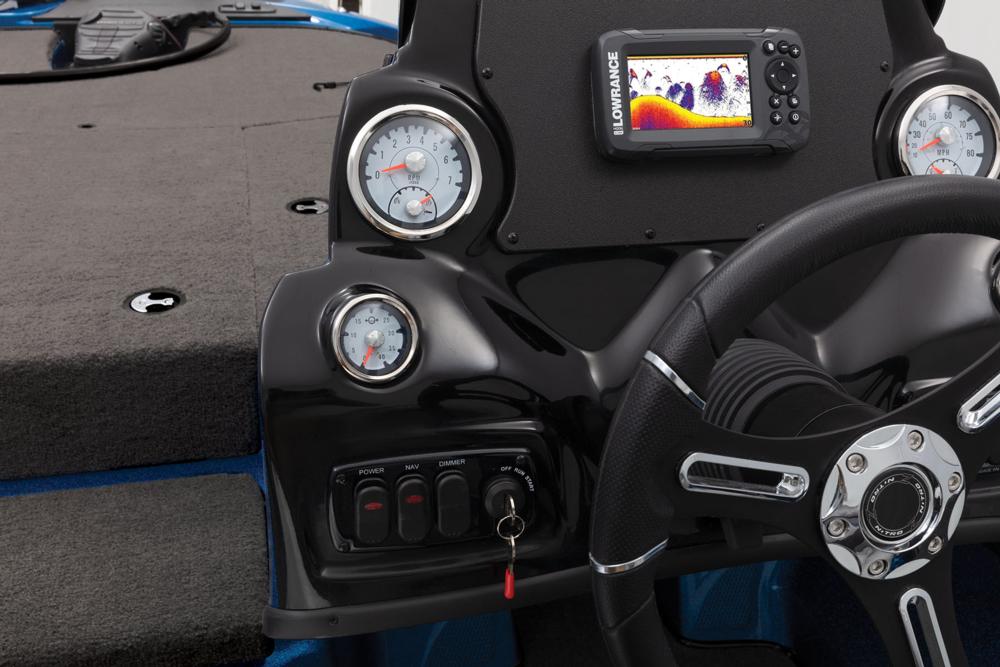

Console

Custom-molded modular console w/2-tone gelcoat
Lowrance® HOOK2 4x flush-mounted fishfinder
Single cable, no feedback rotary steering w/tilt
Removable acrylic, tinted windscreen
Ready to accept optional removable port console
Veethree® multifunction instrumentation w/speedometer/fuel gauge, tach/trim gauge, voltmeter gauge & water pressure gauge
Dash light dimmer
Water-resistant switch panels
LED courtesy light
12V outlet
Room to flush-mount optional, exchanged 9" (22.86 cm) fishfinder

Interior

32-sq.-ft. (3.0-sq.-m) bow deck for casting mobility w/lots of storage
Bike seat w/pedestal
Folding fishing seat w/composite frame
Driver & passenger bucket seats w/molded-in storage below
Bow port & starboard rod hold-down straps
Molded-in drainage channels around bow storage compartments
Oversized, lockable bow port & starboard rod lockers for rods up to 7' (2.13 m)
Oversized lockable bow center storage locker w/lift assist & organizer for 4 rods up to 7' 6" (2.29 m)

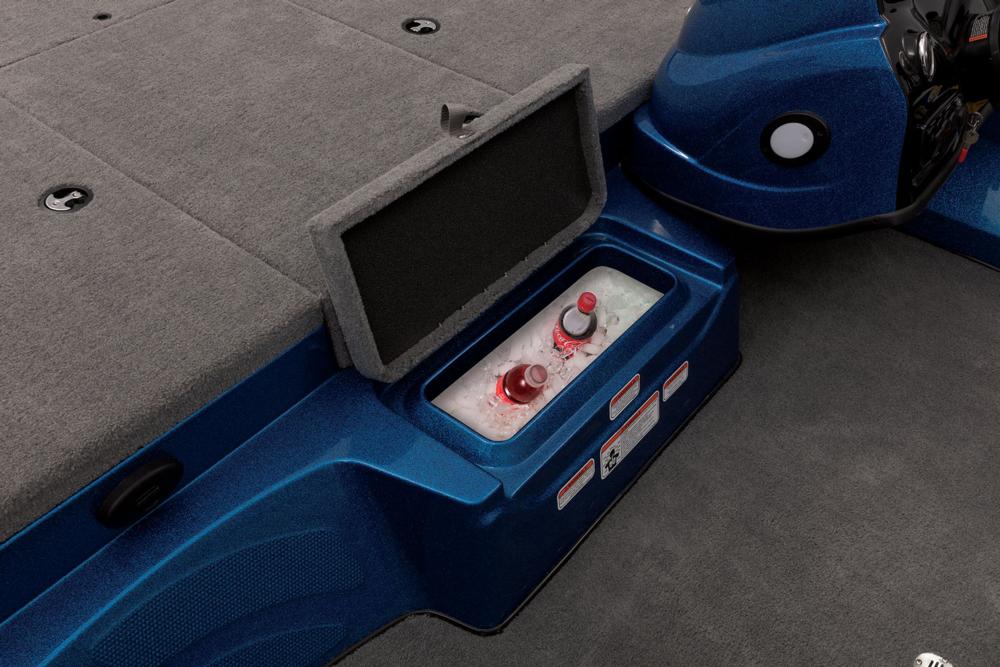

Step to bow deck w/42-qt. (39.75 L) insulated cooler
Partner rod ramp w/rod handle organizer & hold-down strap
Footrest w/non-skid mat under console(s)
Step to aft deck w/polymer lid

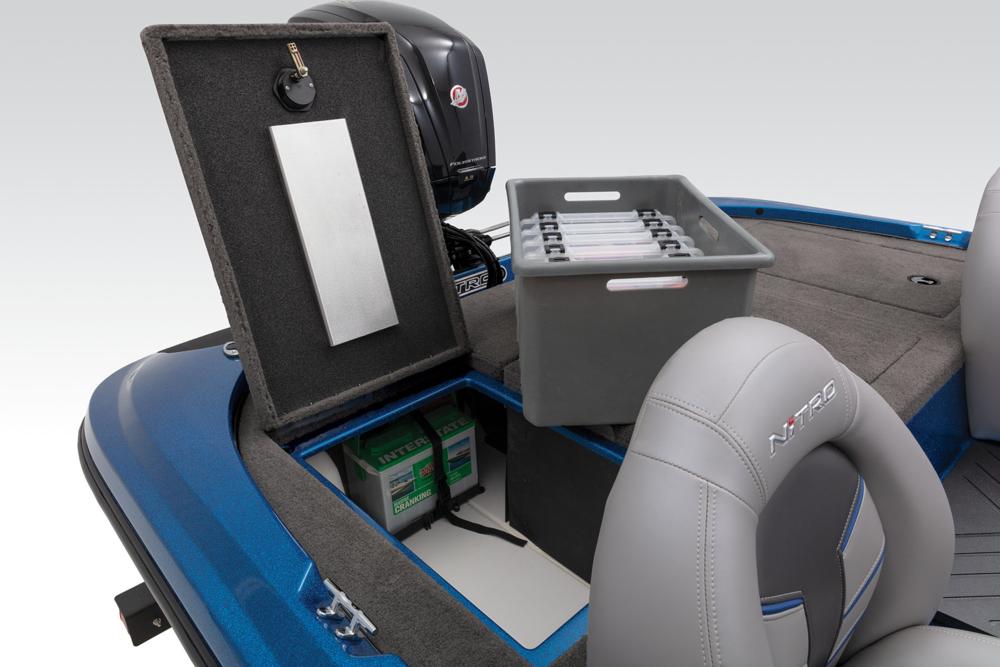

2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays
Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup
Insulated aluminum lids w/welded corners
16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor
Lockable latches

Exterior

NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride
RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed
Rigging tube for organized wiring & abrasion resistance
Stainless steel propeller

Construction & Exterior

100% composite deck core w/superior thermal stability & strength-to-weight ratio
Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)
Gelcoated stringer/liner system
Foam-filled hull for optimal buoyancy & safety
Full-width fiberglass-encapsulated composite transom
Low-profile gunnels to maximize deck size & for easier casting
Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor

Electrical

Bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount 9" (22.86 cm) fishfinder
LED console courtesy light
Automotive-style labeled fuse panel w/cover
Interstate® cranking battery
Heavy-duty Interstate® trolling battery
2-bank, 10-amp battery charger w/exterior receptacle
6-gauge trolling motor wiring w/50-amp circuit breaker
Master power switch
Waterproof Deutsch plugin gauge connectors
Water/abrasion-resistant connectors

Trailer

Custom-fit, single-axle NITRO® trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
7-pin connector
13" (33.02 cm) chrome wheels w/radial tires
Spare tire carrier (spare tire available at additional cost)
All-welded rectangular GALVASHIELD® frame
Space-saving swing-away tongue to reduce storage length
Fold-away tongue jack
Heavy-duty winch w/nylon strap & bow safety strap
Outboard motor support to reduce hull & transom stress while towing
Carpeted bunks & fender boards to protect hull
Submersible LED lights
Safety cables

Options

Bow Fishfinder

Lowrance® HOOK Reveal 5C (flush mounted)	$350
Lowrance® HOOK Reveal 5C installation fee	$100
Lowrance® HOOK Reveal 7C (flush mounted)	$550
Lowrance® HOOK Reveal 7C installation fee	$100
NEW Lowrance® Elite FS™ 7 (flush mounted)	$550
NEW Lowrance® Elite FS™ 7 (gimbal mounted)	$550
NEW Lowrance® Elite FS™ 7 (RAM® mounted)	$550
Lowrance® Elite FS™ 7 installation fee	$100

Console Fishfinder Exchange

Lowrance® HOOK Reveal 5C (flush mounted).	$250
Lowrance® HOOK Reveal 5C installation fee.	$100
Lowrance® HOOK Reveal 7C (flush mounted).	$450
Lowrance® HOOK Reveal 7C installation fee.	$100

Battery & Battery Charger

GEN 2-bank, 20-amp battery charger	$95
Dual Pro® international battery charger	$295

Cushion & Seating

2 bike seats (exchange)	$100
2 jump seats (exchange)	$180
Center seat	$375
Hydraulic pedestal (exchange)	$190

Functional

2 oxygen generators	$325
Automatic bilge pump	$125
Keel protector (Black or White)	$315
Loc-R-Bar® w/alarm (dealer installation not included)	$250

Performance & Steering

BayStar™ hydraulic steering $350
Trolling Motor

MotorGuide® X3 24V, 70-lb. (31.75 kg) thrust, 45" (1.14 m) shaft trolling motor $130
Functional

Removable port console & hardware (factory installed) $1125

Cover

Mooring cover for side console—Charcoal	$580
Mooring cover for dual consoles—Charcoal	$645

Trailer

Retractable trailer tie downs	$70
Single-axle trailer upgrade w/1 brake	$500
Single-axle spare tire	$145
13" (33.02 cm) single-axle custom aluminum wheels w/spare tire	$275
