Model Year-End Clearance is here! See Your Dealer Today!

Limited 2024 Availability

* PREVIOUS MODEL YEAR IMAGES SHOWN

2023

Z19

w/ 200 L Pro XS® FourStroke Mercury® Pro XS®

Boat, Motor, & Trailer

View Price w/ Prep & Freight:

NO HAGGLE NO HASSLE® National Price Base Price	$48995 USD

NO HAGGLE NO HASSLE® National Price

Base Price

$48995

USD

Your Price w/ Prep & Freight:	USD

FIND A DEALER

BUILD YOUR OWN

Overview

The NITRO Z19 is the perfect blend of performance, capability and tournament-ready features. A proven hull carries up to 200 horses to get you up to speed in a hurry while the massive casting deck has ample space for you and a buddy. Inside, the massive rod storage and center box storages carry a world of gear. Underneath, the standard trailer is custom-matched to the Z19 for years of smooth on-road performance and confident loading and unloading. For a rig that outclasses the competition and punches above its weight, the Z19 answers the call.

At the fishing hole, the Z19 offers everything from a step to the aft deck with storage, an angled bow panel, livewell lid culling bracket and much, much more!

Download Brochure

Build My Z19

Specifications

Standard | Metric

Length	5.89 m	19' 4''
Beam	2.39 m	7' 10''
Bottom Width	1.88 m	6' 2''
Max. Recommended HP	200 HP
Fuel Capacity	189.25 L	50 gal.
Max. Person Capacity	4 persons
Max. Person Weight	226.8 kg	500 lbs.
Max. Person, Motor & Gear Weight	623.69 kg	1375 lbs.
Interior Depth	46.99 cm	18.5''
Transom Height	58.42 cm	23''

Deadrise	16 degrees
Draft	38.1 cm	15''
Average Dry Weight	839.15 kg	1850 lbs.
Average Package Weight	1587.57 kg	3500 lbs.
Package Height	1.7 m	5' 7''
Package Width	2.59 m	8' 6''
Towing Length	7.62 m	25'
Storage Length	7.29 m	23' 11''
Storage Length (w/Outboard Trimmed Down)	7.01 m	23'

Motor Options

AVAILABLE MOTOR	ESTIMATED SPEEDS
Mercury® Pro XS®
200 L Pro XS® FourStroke	-	$48995 USD	Select Dealer

Standard Features

Comfort, Convenience & Peace of Mind

NMMA® certified
Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
EPA-compliant fuel system
Non-skid bow & stern mats
5 drink holders
5 stainless steel pull-up cleats, including cleat at driver seat
4 grab handles (1 at each seat)
Fire extinguisher
Horn
Paddle

Livewell System

2 aft 19-gal. (71.92 L) insulated, rotomolded GUARDIAN™ livewells w/digital timers & rounded corners
500 GPH (1,892.71 LPH) aerator/fill pump
750 GPH (2,839.06 LPH) livewell recirculation/pump-out system
Dual remote drain controls
Starboard livewell lid w/culling bracket

Trolling Motor

Minn Kota® Maxxum® 24V, 70-lb. (31.75 kg) thrust, 42" (1.07 m) shaft, foot-control trolling motor w/mount
Trolling motor pedal recess

Console

Modular, aerodynamic console design w/expanded leg clearance & large fishfinder surface
Removable acrylic, tinted windscreen
Lowrance® HOOK Reveal 5C flush-mounted fishfinder
NEW 5" (12.7 cm) digital touchscreen
Veethree® multifunction instrumentation w/speedometer/fuel gauge, tach/trim gauge, voltmeter gauge & water pressure gauge
Dash light dimmer
Tilt hydraulic steering
Below-console RAM® X-Grip® phone holder & 12V outlet
LED courtesy light
Ready to accept optional removable port console

Interior

34-sq.-ft. (3.2-sq.-m) bow deck for casting mobility
Bike seat w/pedestal
Folding fishing seat w/composite frame
Z-CORE™ seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats
Low driver & passenger flat seat mounting
Bow tool/drink holder
Bow port & starboard rod hold-down straps
Molded-in drainage channels around bow storage compartments

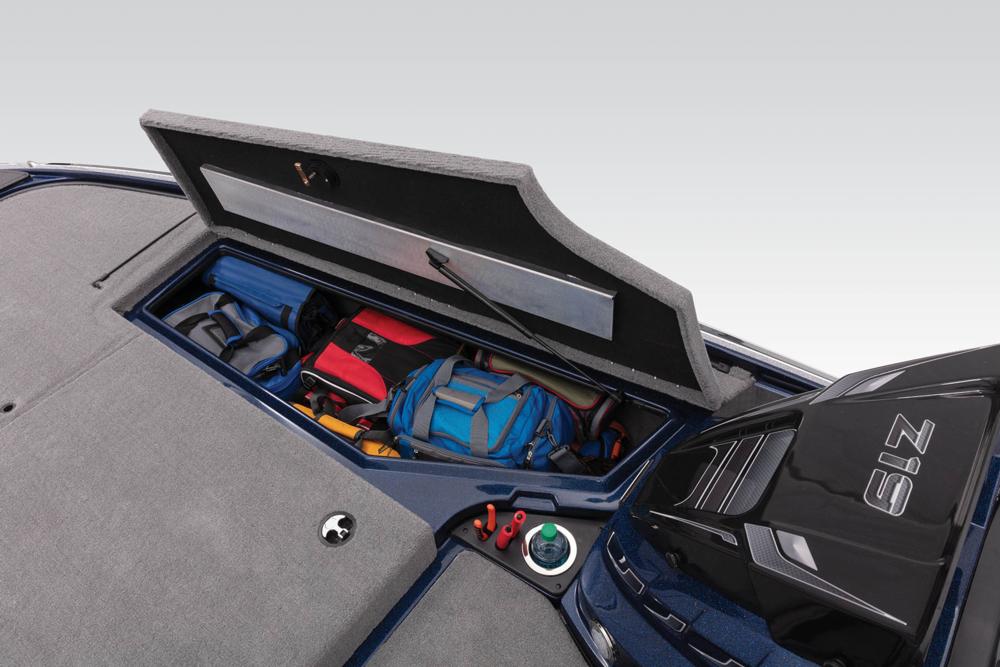

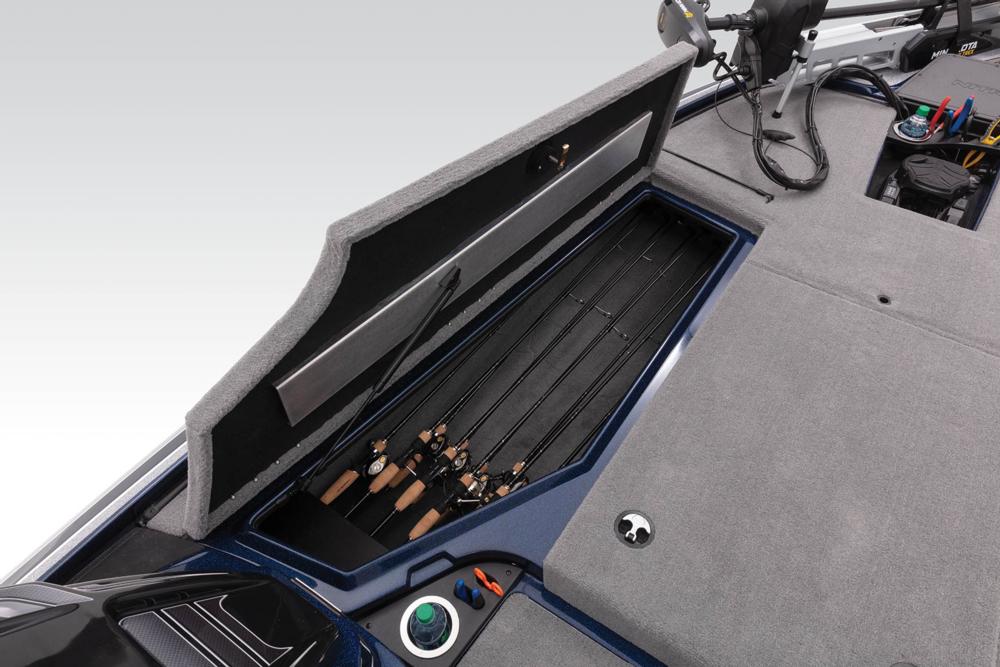

Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8' (2.44 m)
Oversized lockable bow center storage locker
Step to bow deck w/62-qt. (58.67 L) insulated cooler, removable trash receptacle & snap-in sandwich tray
Partner rod ramp w/rod handle organizer & hold-down strap
Footrest w/non-skid mat under console(s)

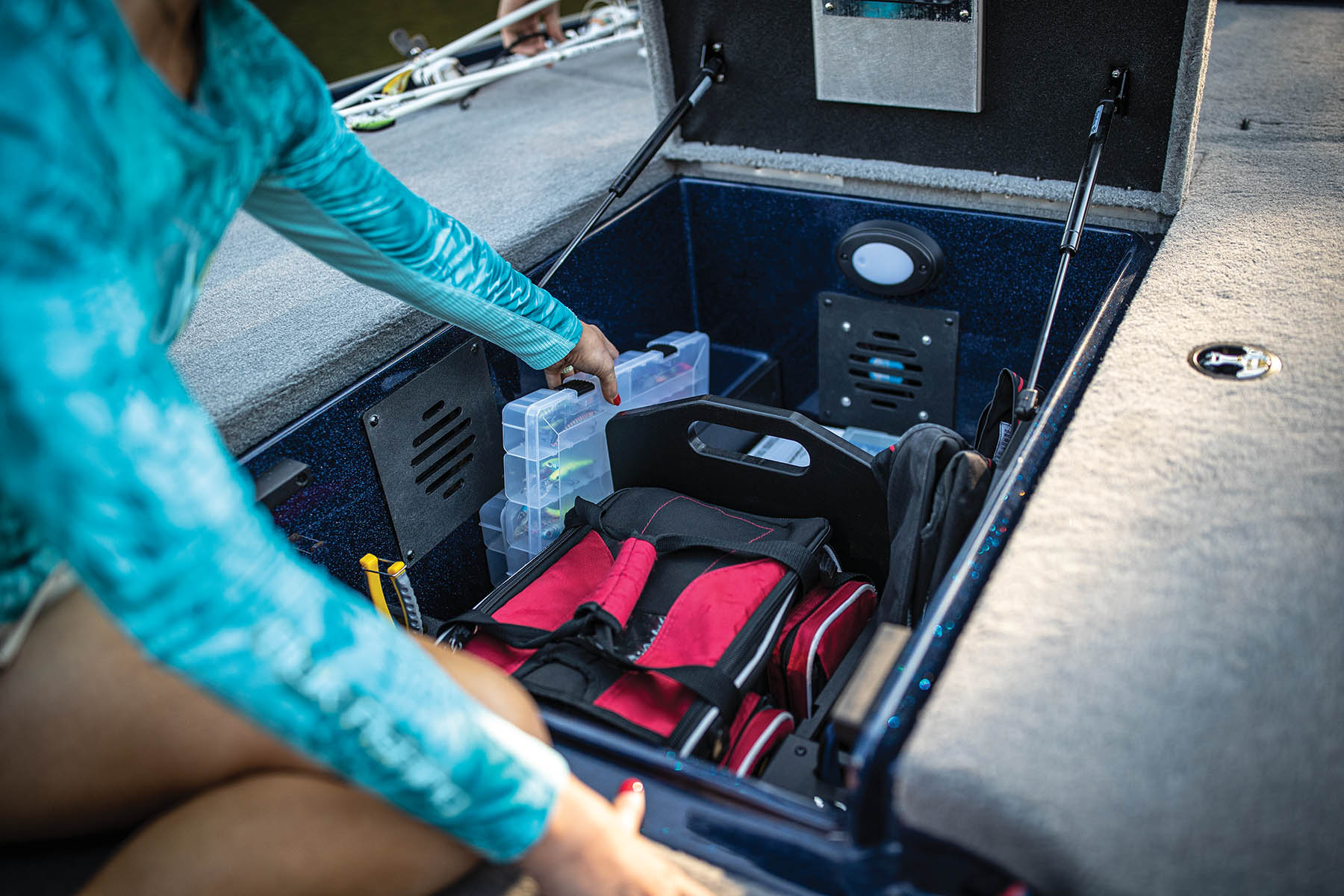

Integrated step to aft deck w/lockable storage & removable tub
Designated net storage behind seating
Built-in tournament ruler & holder
2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays
Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup
Lift-out tool/rope storage tray in rigging compartment
Insulated aluminum lids w/welded corners
16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor
Lockable latches

Exterior

NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride
RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed
10” (25.4 cm) R&R Design Slidemaster adjustable jack plate—Black
Rigging tube for organized wiring & abrasion resistance
Stainless steel propeller

Construction & Exterior

100% composite deck core w/superior thermal stability & strength-to-weight ratio
Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)
Gelcoated stringer/liner system
Foam-filled hull for optimal buoyancy & safety
Full-width fiberglass-encapsulated composite transom
Low-profile gunnels to maximize deck size & for easier casting
NEW splashwell protective film
Stainless steel reboarding ladder, angled for allowing optional shallow-water anchor

Electrical

Angled bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount 10" (25.4 cm) fishfinder
LED console courtesy light
Manual LED-lighted bow gear storage
Automotive-style labeled fuse panel w/cover
Interstate® cranking battery
2 heavy-duty Interstate® trolling batteries
NEW NOCO® GB40 jump starter pack
3-bank, 30-amp onboard battery charger w/exterior receptacle
6-gauge trolling motor wiring w/50-amp circuit breaker
Master power switch
Waterproof Deutsch plugin gauge connectors
Water/abrasion-resistant connectors

Trailer

Custom-fit, single-axle NITRO® trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
7-pin connector
15" (38.1 cm) chrome wheels w/radial tires
Surge disc brakes
Hub system w/1-year limited warranty
All-welded rectangular GALVASHIELD® frame
Space-saving swing-away tongue to reduce storage length
Fold-away tongue jack
Heavy-duty winch w/nylon strap & bow safety strap
Outboard motor support to reduce hull & transom stress while towing
Carpeted bunks & fender boards to protect hull
Submersible LED lights
Retractable transom tie downs
Safety cables

Options

Fishfinder Technology

Add ActiveTarget® to all Lowrance® fishfinders	$1995
Add *NEW* LiveScope™ Plus System to all Garmin® fishfinders	$1960

Bow Fishfinder

Bow Lowrance® HOOK Reveal 5C	$625
Bow Lowrance® HOOK Reveal 7C	$850
Bow Lowrance® Elite FS® 7	$1025
Bow Lowrance® Elite FS® 9	$1425
Bow Lowrance® HDS® LIVE 9 w/StructureScan® (no longer available)	$2395
Bow Lowrance® HDS® PRO 9 w/StructureScan®	$2480
Bow Lowrance® HDS® LIVE 12 w/StructureScan® (no longer available)	$3595
Bow Lowrance® HDS® PRO 12 w/StructureScan®	$3745
Bow Humminbird® HELIX® 9 SI G4N w/GPS	$2395
Bow Humminbird® HELIX® 10 SI G4N w/GPS	$2950
Bow Humminbird® HELIX® 12 SI G4N w/GPS	$3495
Bow Humminbird® SOLIX® 10 SI G3	$3475
Bow Humminbird® SOLIX® 12 SI G3	$3950
Bow Garmin® ECHOMAP™ 93sv	$1495
Bow Garmin® ECHOMAP™ 106sv	$2450
Bow Garmin® ECHOMAP™ 126sv	$3225

2nd Bow Fishfinder

*NEW* 2nd bow Garmin® echoMAP™ 93sv w/LiveScope™ Plus System (uninstalled)	$3205
*NEW* 2nd bow Garmin® echoMAP™ 106sv w/LiveScope™ Plus System (uninstalled)	$4490
*NEW* 2nd bow Garmin® echoMAP™ 126sv w/LiveScope™ Plus System (uninstalled)	$4935

Console Fishfinder Exchange

Console Lowrance® HDS® LIVE 9 w/StructureScan® (no longer available)	$2295
Console Lowrance® HDS® PRO 9 w/StructureScan®	$2380
Console Lowrance® HDS® LIVE 12 w/StructureScan® (no longer available)	$3150
Console Lowrance® HDS® PRO 12 w/StructureScan®	$3550
Console Humminbird® HELIX® 8 SI G4N w/GPS	$1275
Console Humminbird® HELIX® 9 SI G4N w/GPS	$1595
Console Humminbird® HELIX® 10 SI G4N w/GPS	$2150
Console Humminbird® HELIX® 12 SI G4N w/GPS	$2695
Console Humminbird® SOLIX® 10 SI G3	$2650
Console Humminbird® SOLIX® 12 SI G3	$3125
Console Garmin® ECHOMAP™ 106sv	$2150
Console Garmin® ECHOMAP™ 126sv	$2825

Battery & Battery Charger

1 TRACKER® Lithium WRM100HP/31 starting battery & 2 WRM80/27 trolling batteries (for 24V system)	$2095
1 TRACKER® Lithium WRM100HP/31 starting battery & 3 WRM80/27 trolling batteries (for 36V system)	$2750

Lighting

Bow deck, cockpit & aft deck carpet trim lights w/T-H Marine controller & wire harness (factory installed only) $1350

Cushion & Seating

Center seat	$525
Hydraulic pedestal (exchange)	$225

Performance & Steering

Hot Foot® throttle	$275
Trim lever on steering wheel	$125
Dual trim lever on steering wheel (must order hydraulic jack plate)	$175

Trolling Motor

Lowrance® Ghost® 36V, 120-lb. (54.43 kg) thrust, 47" (1.19 m) shaft trolling motor (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2950
Minn Kota® Fortrex® 24V, 80-lb. (36.29 kg) thrust, 45” (1.14 m) shaft trolling motor w/Universal Sonar 2	$595
Minn Kota® Fortrex® 36V, 112-lb. (50.8 kg) thrust, 45” (1.14 m) shaft trolling motor w/Universal Sonar 2 (must upgrade battery & battery charger if upgrading from 24V to 36V)	$875
Minn Kota® Ultrex™ 24V, 80-lb. (36.29 kg) thrust, 45” (1.14 m) shaft trolling motor w/Universal Sonar 2 & i-Pilot®	$1750
Minn Kota® Ultrex™ 24V, 80-lb. (36.29 kg) thrust, 45” (1.14 m) shaft trolling motor w/MEGA Down Imaging® & i-Pilot® Link™	$2500
Minn Kota® Ultrex™ 24V, 80-lb. (36.29 kg) thrust, 52” (1.32 m) shaft trolling motor w/Universal Sonar 2 & i-Pilot®	$1785
Minn Kota® Ultrex™ 36V, 112-lb. (50.8 kg) thrust, 45” (1.14 m) shaft trolling motor w/Universal Sonar 2 & i-Pilot® (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2085
Minn Kota® Ultrex™ 36V, 112-lb. (50.8 kg) thrust, 45” (1.14 m) shaft trolling motor w/MEGA Down Imaging® & i-Pilot® Link™ (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2825
Minn Kota® Ultrex™ 36V, 112-lb. (50.8 kg) thrust, 52” (1.32 m) shaft trolling motor w/Universal Sonar 2 & i-Pilot® (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2135
Minn Kota® Ultrex™ 36V, 112-lb. (50.8 kg) thrust, 52” (1.32 m) shaft trolling motor w/MEGA Down Imaging® & i-Pilot® Link™ (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2895
Garmin® Force® 36V, 80-lb. (36.29 kg) thrust, 50” (1.27 m) shaft trolling motor (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2795
Garmin® Force® 36V, 100-lb. (45.36 kg) thrust, 57” (1.45 m) shaft trolling motor (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2895

Functional

Removable port console & hardware (factory installed)	$1595
Port under deck storage drawer	$295
KICKER® KMC1 Bluetooth®-capable stereo system	$495
SmartCraft® gauges	$825
Automatic bilge pump	$150
2 oxygen generators	$450
Livewell culling system	$95
HydroWave® electronic fish attractor	$675
Magnetic under-lid lure holder/organizer	$150
Rod organizer	$175
Ventilation fan in bow storage box	$150
Bow NITRO® carpet graphic	$95
Anti-fatigue mat	$125
MarineMat cockpit floor (replaces carpet)	$275
Keel protector (Black or White)	$375
10" (25.4 cm) Bob's Action hydraulic jack plate	$1275
*NEW* Minn Kota® Raptor™ 8’ (2.44 m) shallow-water anchor	$2225
*NEW* 2 Minn Kota® Raptor™ 8’ (2.44 m) shallow-water anchors	$4395
Minn Kota® Talon 10' (3.05 m) shallow-water anchor—Black (dealer installed)	$2450
2 Minn Kota® Talon 10' (3.05 m) shallow-water anchors—Black (dealer installed)	$4895
Power-Pole® Blade 8' (2.44 m) shallow-water anchor—Black (dealer installed)	$2295
2 Power-Pole® Blade 8' (2.44 m) shallow-water anchors—Black (dealer installed)	$4475

Cover

2-tone mooring cover for side console—Black & Charcoal	$595
2-tone mooring cover for side console w/pod—Black & Charcoal	$725
2-tone mooring cover for dual consoles—Black & Charcoal	$675
2-tone mooring cover for dual consoles w/pod—Black & Charcoal	$750

Trailer

Fiberglass fenders for tandem-axle trailer	$1495
Tandem-axle trailer upgrade w/2 brakes, 14" (35.56 cm) tire/wheel upgrade & spare tire	$2125
18" (45.72 cm) custom Black tire/wheel upgrade w/spare tire	$2195
