Model Year-End Clearance is here! See Your Dealer Today!

Limited 2024 Availability

2024

Z20

w/ 250 L Pro XS® w/Torque Master Mercury® Pro XS®

Boat, Motor, & Trailer

View Price w/ Prep & Freight:

NO HAGGLE NO HASSLE® National Price Base Price	$57995 USD

NO HAGGLE NO HASSLE® National Price

Base Price

$57995

USD

Your Price w/ Prep & Freight:	USD

FIND A DEALER

BUILD YOUR OWN

Overview

Many professional tournament anglers choose the NITRO® Z20 because it competes with larger boats in regard to speed but is compact enough for probing docks and shallower water. The basis of the Z20 is the NITRO VORTEX TECHNOLOGY™ (NVT™) hull—a design that uses a series of parabolic curves for quicker holeshots, more lift while on plane and improved handling.

The Z20 is optimized for tournament angling with a Lowrance® fishfinder, two massive 8’ bow rod lockers and an enormous center tackle storage compartment with the NITRO-exclusive TACKLE MANAGEMENT SYSTEM™. It comes fully rigged with a custom-matched, tandem-axle trailer with GALVASHIELD® Impact protection.

Download Brochure

Gallery

Details

Specifications

Standard | Metric

Length	6.15 m	20' 2''
Beam	2.39 m	7' 10''
Bottom Width	1.91 m	6' 3''
Max. Recommended HP	250 HP
Fuel Capacity	189.25 L	50 gal.
Max. Person Capacity	4 persons
Max. Person Weight	260.82 kg	575 lbs.
Max. Person, Motor & Gear Weight	793.79 kg	1750 lbs.
Interior Depth	45.72 cm	18''

Transom Height	55.88 cm	22''
Deadrise	16 degrees
Draft	40.64 cm	16''
Average Dry Weight	907.18 kg	2000 lbs.
Average Package Weight	1837.05 kg	4050 lbs.
Package Height	1.85 m	6' 1''
Package Width	2.59 m	8' 6''
Towing Length	8.23 m	27'
Storage Length	7.21 m	23' 8''

Motor Options

AVAILABLE MOTOR	ESTIMATED SPEEDS
Mercury® Pro XS®
225 L Pro XS® w/Torque Master	-	$56715 USD	Select Dealer
250 L Pro XS® w/Torque Master	-	$57995 USD	Select Dealer

Standard Features

Comfort, Convenience & Peace of Mind

NMMA® certified
Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
EPA-compliant fuel system
Anti-fatigue, padded comfort bow deck
Non-skid bow & stern mats
Low-profile gunnels to maximize deck size & for easier casting
Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor
5 stainless steel pull-up cleats, including cleat at driver seat
4 grab handles (1 at each seat)
Fire extinguisher
Horn
Paddle

Livewell System

2 aft 19-gal. (71.92 L) insulated, rotomolded GUARDIAN™ livewells w/digital timers & rounded corners
500 GPH (1,892.71 LPH) aerator/fill pump
750 GPH (2,839.06 LPH) livewell recirculation/pump-out system
Dual remote drain controls

Trolling Motor

Minn Kota® Maxxum® 24V, 70-lb. (31.75 kg) thrust, 42" (1.07 m) shaft, foot-control trolling motor w/mount
Trolling motor pedal recess

Console

Modular, aerodynamic console design w/expanded leg clearance & large fishfinder surface
Removable acrylic, tinted plexiglass windscreen
Lowrance® HOOK Reveal 5C flush-mounted fishfinder
5" (12.7 cm) digital touchscreen control
Veethree® multifunction instrumentation w/speedometer/fuel gauge, tach/trim gauge, voltmeter gauge & water pressure gauge
Dash light dimmer
Tilt hydraulic steering
Below-console RAM® X-Grip® phone holder & 12V outlet
LED courtesy light
Ready to accept optional removable port console

Interior

42.5-sq.-ft. (4.0-sq.-m) anti-fatigue, padded bow deck for comfort & casting mobility
Bike seat w/pedestal
Folding fishing seat w/composite frame
Z-CORE™ seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats
Low driver & passenger flat seat mounting
Bow tool/drink holder
Bow port & starboard rod hold-down straps
Molded-in drainage channels around bow storage compartments
Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8' (2.44 m)
Rod organizer in bow port rod locker
Oversized lockable bow center storage locker w/TACKLE MANAGEMENT SYSTEM™
Step to bow deck w/62-qt. (58.67 L) insulated cooler, removable trash receptacle & snap-in sandwich tray
Partner rod ramp w/rod handle organizer & hold-down strap
Footrest w/non-skid mat under console(s)
Step to aft deck w/lockable storage & removable tub
Designated net storage behind seating
Built-in tournament ruler & holder
2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays
Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup
Lift-out tool/rope storage tray in rigging compartment
Insulated aluminum lids w/welded corners
16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor
Lockable latches

Performance

RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed
12" (30.48 cm) adjustable jack plate—Black
Rigging tube for organized wiring & abrasion resistance
Stainless steel propeller

Construction & Exterior

100% composite deck core w/superior thermal stability & strength-to-weight ratio
Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)
Gelcoated stringer/liner system
Foam-filled hull for optimal buoyancy & safety
Full-width fiberglass-encapsulated composite transom
Splashwell protective film

Electrical

Angled bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount most 12" (30.5 cm) fishfinders
LED console courtesy light
Manual LED-lighted bow gear storage
Automotive-style labeled fuse panel w/cover
Interstate® cranking battery
2 heavy-duty Interstate® trolling batteries
NOCO® GB40 jump starter pack
3-bank, 30-amp onboard battery charger w/exterior receptacle
6-gauge trolling motor wiring w/50-amp circuit breaker
Master power switch
Waterproof Deutsch connectors on gauges
Water- & abrasion-resistant connectors

Trailer

NEW custom-fit, tandem-axle steel NITRO® trailer w/enhanced stability & performance
7-pin connector
14" (35.56 cm) custom aluminum wheels w/radial tires
Surge disc brakes on both axles
Hub system w/1-year limited warranty
Spare tire carrier w/matching spare
All-welded rectangular GALVASHIELD® frame
Space-saving swing-away tongue to reduce storage length
Fold-away tongue jack
Heavy-duty winch w/nylon strap & bow safety strap
Integrated winch stand step w/safety handle for easier boarding/reboarding at bow while boat is on trailer
Outboard motor support to reduce hull & transom stress while towing
Carpeted bunks & fender boards to protect hull
Submersible LED lights
Retractable transom tie downs
Safety cables

Options

Fishfinder Technology

Add ActiveTarget® to all Lowrance® fishfinders	$1995
Add LiveScope™ Plus System to all Garmin® fishfinders	$1960

Bow Fishfinder

Bow Lowrance® HOOK Reveal 5C	$625
Bow Lowrance® HOOK Reveal 7C	$850
Bow Lowrance® Elite FS® 7	$1025
Bow Lowrance® Elite FS® 9	$1425
Bow Lowrance® HDS® PRO 9 w/StructureScan®	$2480
Bow Lowrance® HDS® PRO 10 w/StructureScan®	$2980
Bow Lowrance® HDS® PRO 12 w/StructureScan®	$3745
Bow Humminbird® HELIX® 9 SI G4N w/GPS	$2395
Bow Humminbird® HELIX® 10 SI G4N w/GPS	$2950
Bow Humminbird® HELIX® 12 SI G4N w/GPS	$3495
Bow Humminbird® SOLIX® 10 SI G3	$3475
Bow Humminbird® SOLIX® 12 SI G3	$3950
Bow Garmin® ECHOMAP™ 93sv	$1905
Bow Garmin® ECHOMAP™ 106sv	$2450
Bow Garmin® ECHOMAP™ 126sv	$3225

2nd Bow Fishfinder

2nd bow Garmin® ECHOMAP™ 93sv w/LiveScope™ Plus System (uninstalled)	$3405
2nd bow Garmin® ECHOMAP™ 106sv w/LiveScope™ Plus System (uninstalled)	$4490
2nd bow Garmin® ECHOMAP™ 126sv w/LiveScope™ Plus System (uninstalled)	$4935

Console Fishfinder Exchange

Console Lowrance® HDS® PRO 9 w/StructureScan®	$2340
Console Lowrance® HDS® PRO 10 w/StructureScan®	$2800
Console Lowrance® HDS® PRO 12 w/StructureScan®	$3490
Console Humminbird® HELIX® 8 SI G4N w/GPS	$1275
Console Humminbird® HELIX® 9 SI G4N w/GPS	$1595
Console Humminbird® HELIX® 10 SI G4N w/GPS	$2150
Console Humminbird® HELIX® 12 SI G4N w/GPS	$2695
Console Humminbird® SOLIX® 10 SI G3	$2650
Console Humminbird® SOLIX® 12 SI G3	$3125
Console Garmin® ECHOMAP™ 106sv	$2150
Console Garmin® ECHOMAP™ 126sv	$2825

Battery & Battery Charger

1 TRACKER® Lithium WRM100HP/31 starting battery & 3 WRM80/27 trolling batteries (for 36V system) $2760

Lighting

Bow deck, cockpit & aft deck carpet trim lights w/T-H Marine controller & wire harness (factory installed only) $1350

Cushion & Seating

Power-adjust pneumatic lumbar support for driver’s seat	$295
Center seat	$525
Dowco® CruiseAir® fully-adjustable air suspension driver seat	$950
Dowco® CruiseAir® fully-adjustable air suspension driver & passenger seats	$1995
Hydraulic pedestal (exchange)	$225

Performance & Steering

Hot Foot® throttle	$385
Trim lever on steering wheel	$125
Dual trim lever on steering wheel (must order hydraulic jack plate)	$175

Trolling Motor

Lowrance® Ghost® 36V, 120-lb. (54.43 kg) thrust, 47" (1.19 m) shaft trolling motor (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2950
Minn Kota® Fortrex® 24V, 80-lb. (36.29 kg) thrust, 45” (1.14 m) shaft trolling motor	$785
*NEW* Minn Kota® Fortrex® 24V, 80-lb. (36.29 kg) thrust, 45” (1.14 m) shaft trolling motor w/Dual Spectrum CHIRP™	$925
*NEW* Minn Kota® Fortrex® 36V, 112-lb. (50.8 kg) thrust, 45" (1.14 m) shaft, foot-control trolling motor w/Universal Sonar 2 & Dual Spectrum CHIRP™ (must upgrade battery & battery charger if upgrading from 24V to 36V)	$1100
*NEW* Minn Kota® Ultrex™ 24V, 80-lb. (36.29 kg) thrust, 52” (1.32 m) shaft trolling motor w/Dual Spectrum CHIRP™	$2550
Minn Kota® Ultrex™ 24V, 80-lb. (36.29 kg) thrust, 52” (1.32 m) shaft trolling motor w/MEGA Down Imaging®	$2680
*NEW* Minn Kota® Ultrex™ 36V, 112-lb. (50.8 kg) thrust, 45” (1.14 m) shaft trolling motor w/Universal Sonar 2 & Dual Spectrum CHIRP™ (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2800
Minn Kota® Ultrex™ 36V, 112-lb. (50.8 kg) thrust, 45” (1.14 m) shaft trolling motor w/MEGA Down Imaging® & i-Pilot® Link™ (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2770
*NEW* Minn Kota® Ultrex™ 36V, 112-lb. (50.8 kg) thrust, 52” (1.32 m) shaft trolling motor w/Universal Sonar 2 & Dual Spectrum CHIRP™ (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2905
Minn Kota® Ultrex™ 36V, 112-lb. (50.8 kg) thrust, 52” (1.32 m) shaft trolling motor w/MEGA Down Imaging® (must upgrade battery & battery charger if upgrading from 24V to 36V)	$3230
*NEW* Minn Kota® Ultrex™ QUEST™ 36V, 115-lb. (52.16 kg) thrust, 45” (1.14 m) shaft trolling motor w/MEGA Side Imaging® (must upgrade battery & battery charger if upgrading from 24V to 36V)	$3505
*NEW* Minn Kota® Ultrex™ QUEST™ 36V, 115-lb. (52.16 kg) thrust, 45” (1.14 m) shaft trolling motor w/Dual Spectrum CHIRP™ (must upgrade battery & battery charger if upgrading from 24V to 36V)	$3185
*NEW* Minn Kota® Ultrex™ QUEST™ 36V, 115-lb. (52.16 kg) thrust, 52” (1.32 m) shaft trolling motor w/MEGA Side Imaging® (must upgrade battery & battery charger if upgrading from 24V to 36V)	$3610
*NEW* Minn Kota® Ultrex™ QUEST™ 36V, 115-lb. (52.16 kg) thrust, 52” (1.32 m) shaft trolling motor w/Dual Spectrum CHIRP™ (must upgrade battery & battery charger if upgrading from 24V to 36V)	$3290
Garmin® Force® 36V, 80-lb. (36.29 kg) thrust, 50” (1.27 m) shaft trolling motor (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2795
Garmin® Force® 36V, 100-lb. (45.36 kg) thrust, 57” (1.45 m) shaft trolling motor (must upgrade battery & battery charger if upgrading from 24V to 36V)	$2895

Functional

Removable port console & hardware (factory installed)	$1595
Port under deck storage drawer	$295
KICKER® KMC1 Bluetooth®-capable stereo system	$495
SmartCraft® gauges	$630
Automatic bilge pump	$150
2 oxygen generators	$450
2 oxygen generators w/shut-off switch	$525
Livewell culling system	$95
HydroWave® electronic fish attractor	$675
Spinning rod organizer	$125
Ventilation fan in bow storage box	$150
Bow NITRO® carpet graphic	$95
MarineMat cockpit floor (replaces carpet)	$275
Keel protector (Black or White)	$375
12" (30.48 cm) T-H Marine® ATLAS™ hydraulic jack plate	$1870
12" (30.48 cm) Bob's Machine Shop® hydraulic jack plate	$1365
Minn Kota® Raptor™ 8’ (2.44 m) shallow-water anchor	$2225
2 Minn Kota® Raptor™ 8’ (2.44 m) shallow-water anchors	$4395
Minn Kota® Talon 10' (3.05 m) shallow-water anchor—Black (dealer installed)	$2450
2 Minn Kota® Talon 10' (3.05 m) shallow-water anchors—Black (dealer installed)	$4895
Power-Pole® Blade 8' (2.44 m) shallow-water anchor—Black (dealer installed)	$2295
2 Power-Pole® Blade 8' (2.44 m) shallow-water anchors—Black (dealer installed)	$4475

Cover

2-tone mooring cover for side console—Black & Charcoal	$715
2-tone mooring cover for side console w/pod—Black & Charcoal	$1170
2-tone mooring cover for dual consoles—Black & Charcoal	$775
2-tone mooring cover for dual consoles w/pod—Black & Charcoal	$1225

Trailer

Fiberglass fenders for tandem-axle trailer	$1495
18" (45.72 cm) custom aluminum tire/wheel upgrade w/spare tire (must order fiberglass fenders)	$2195
18" (45.72 cm) custom Black tire/wheel upgrade w/spare tire (must order fiberglass fenders)	$2195

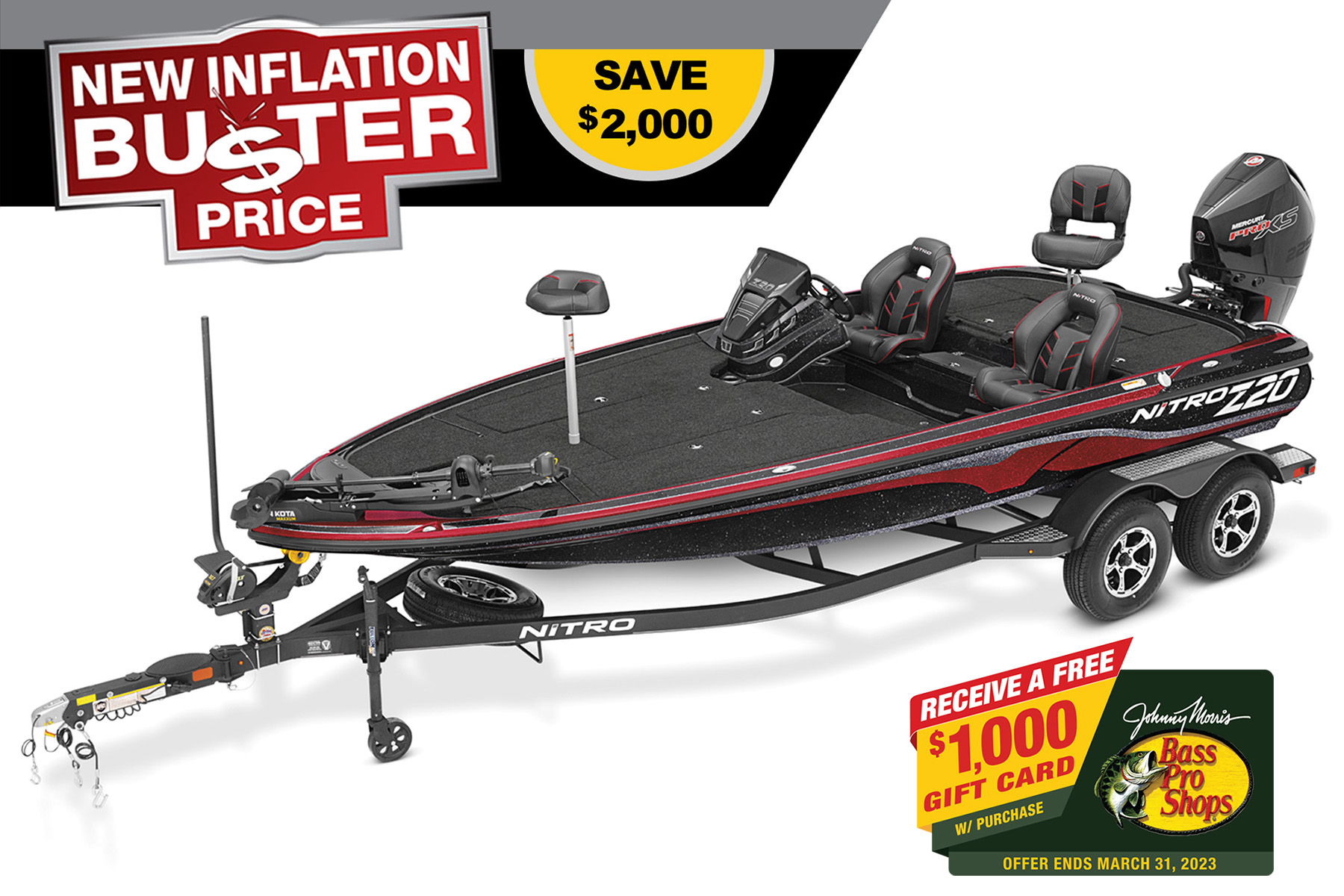

* PREVIOUS MODEL YEAR IMAGES SHOWN
